Maintenance Object Repair Procedures
555-233-123
10-1044 Issue 4 May 2002
6. Click on the new item icon and the laptop connects to the host
pcANYWHERE application on the TN802 circuit pack.

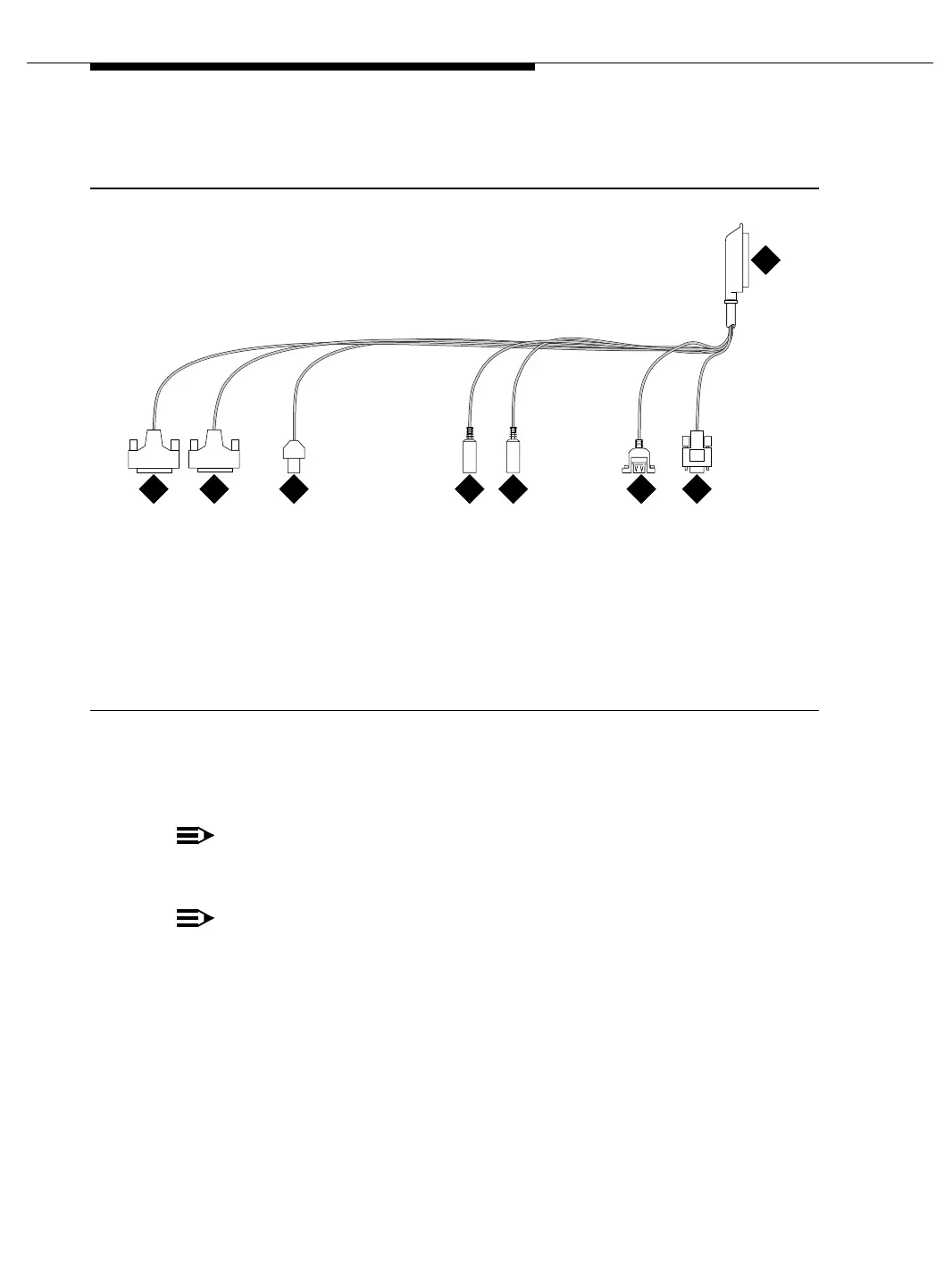

Figure 10-65. TN802 external cable assembly
Directly-connected keyboard, monitor, and
mouse
NOTE:
You need 2 power sources for the monitor and the modem in order to
complete this procedure.
NOTE:
The TN802 circuit pack must be booted with a local mouse and keyboard
connected to it for these devices to work.
1. Connect the VGA monitor to the VGA connector of the TN802 external
cable.
2. Plug the monitor into an AC power receptacle, and turn it on.
3. Attach the keyboard to the keyboard connector of the TN802 external cable
assembly.
4. Attach the mouse to the mouse connector of the TN802 external cable
assembly.
5. Insert the circuit pack to cause it to boot.
Figure Notes:
1. To TN802 cabinet backplane
2. VGA monitor
3. USB (Universal Serial Bus)
4. Keyboard
5. Mouse
6. Ethernet
7. 25-pin modem connection
8. 25-pin COM2 connection
cbdfocto AWF 122398
2
1
3
45
6
78
