Engine
SHOP MANUAL
Ch 1 page 133
The bearing
is correctly
located on
the drift
when the
ball and a
marking
hole are
oppo site the
bearing’s oil
hole
8
8036

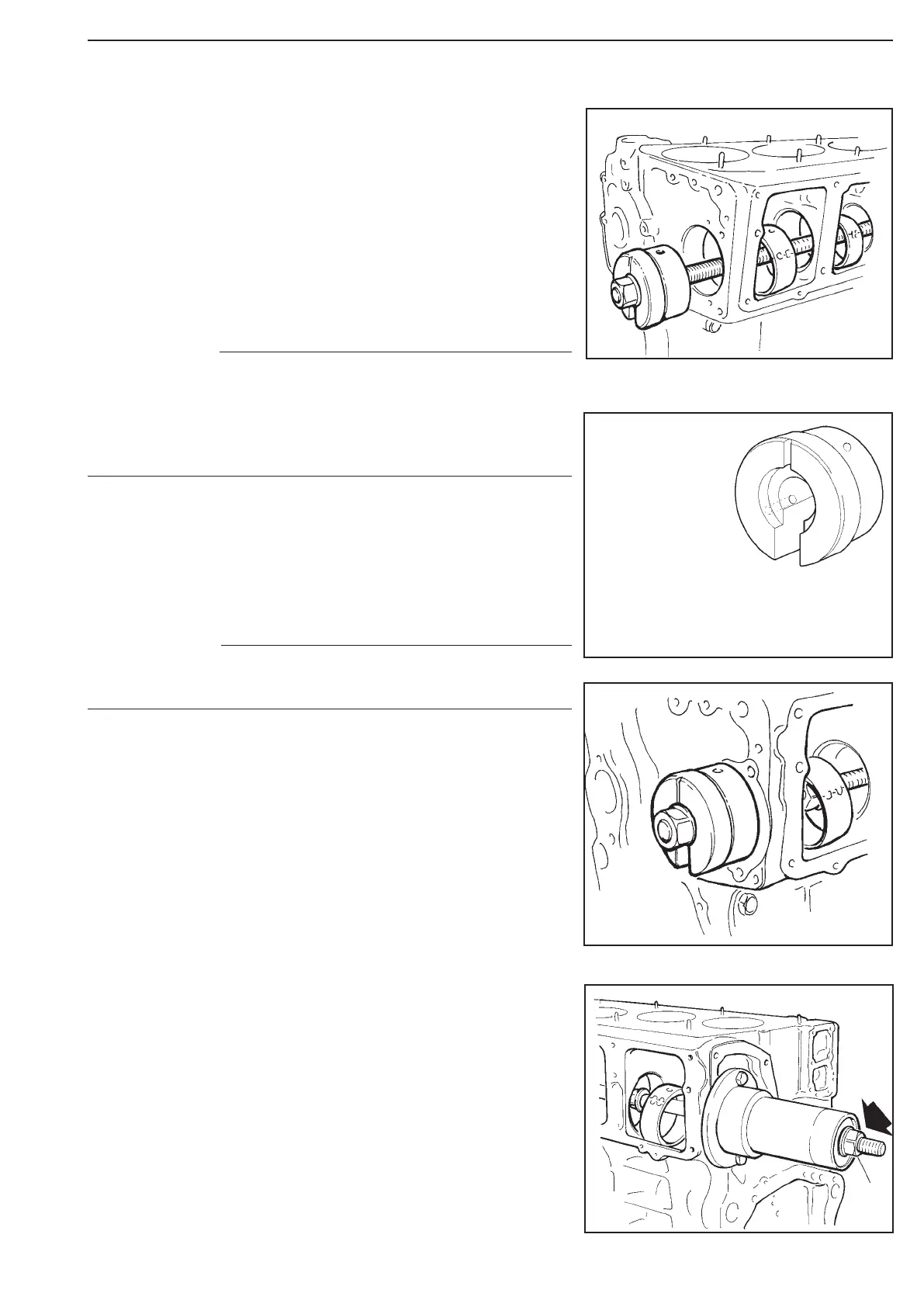

10. Hang a new bearing on the stem at the front
of the engine.
11. Place the press drift on the threaded stem
and place the bearing on the drift.
The recess in the bearing joint must be turned towards the
ange on the press drifts. Secure the bearing on the drift by
placing the spring-loaded ball in an oil way. The bearing is
correctly located on the drift when the ball and a marking
hole are centred on the bearing oil hole.
12. Clean around the bearing contact surface.
13. Hold the press drift with the new bearing
against the old.
Secure the threaded stem
between the press drift and hydraulic
cylinder 8036 by tightening flange nut 8
on the stem.
NOTE
The marking on the drift must be uppermost and vertical so that
the oil hole in the bearing will be central to the oil ways.
NOTE
Figure 261
Figure 262
Figure 263
Figure 264
