SHOP MANUAL
Engine
Ch 1 page 134
Contol measurement of
bearing number 1
By -12 mm it means that the drift
should protrude 12 mm out of the
block.
Table for correctly located camshaft bearing
Camshaft bearing
no. Distance (mm)
1 -12 to -14
2 150 to 152
3 314 to 316
4 478 to 480
5 642 to 644
6 806 to 808
7 970 to 972
14. Press in the new bearing at the same time as
pressing out the old bearing with hydraulic
cylinder 8036 and hydraulic pump
8037. Check that the bearing is correctly
positioned by measuring.
15. Remove the press drift by detaching flange nut 8 and pushing
in the threaded stem.
The new bearing is in the correct position before the old bear-
ing is completely released. The new bearing has the correct
position when the distance from the front edge of the cylinder
block to the front edge of the press drift has a permitted value
according to the table.
NOTE

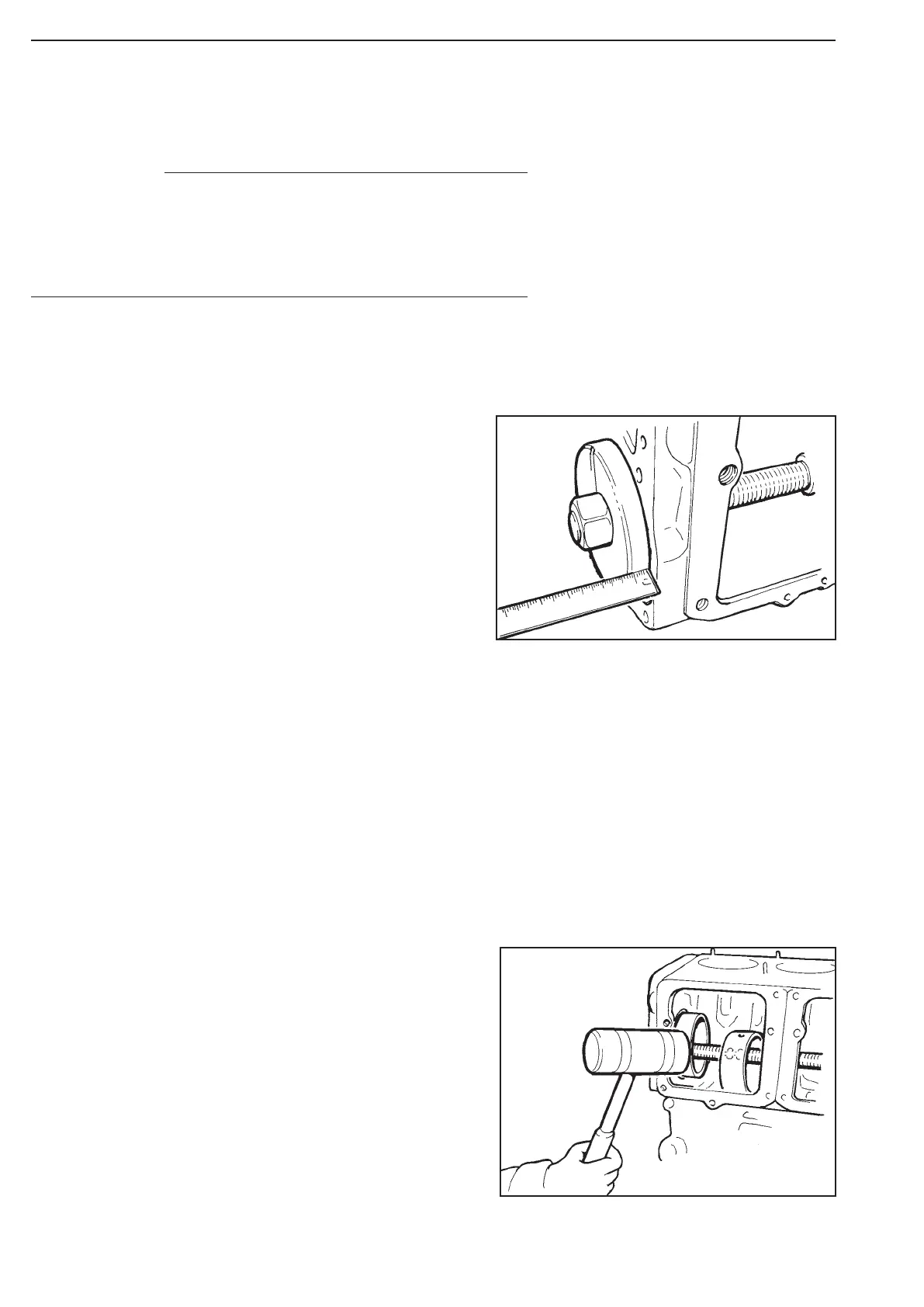

Figure 265
Figure 266
