TRANSMISSION

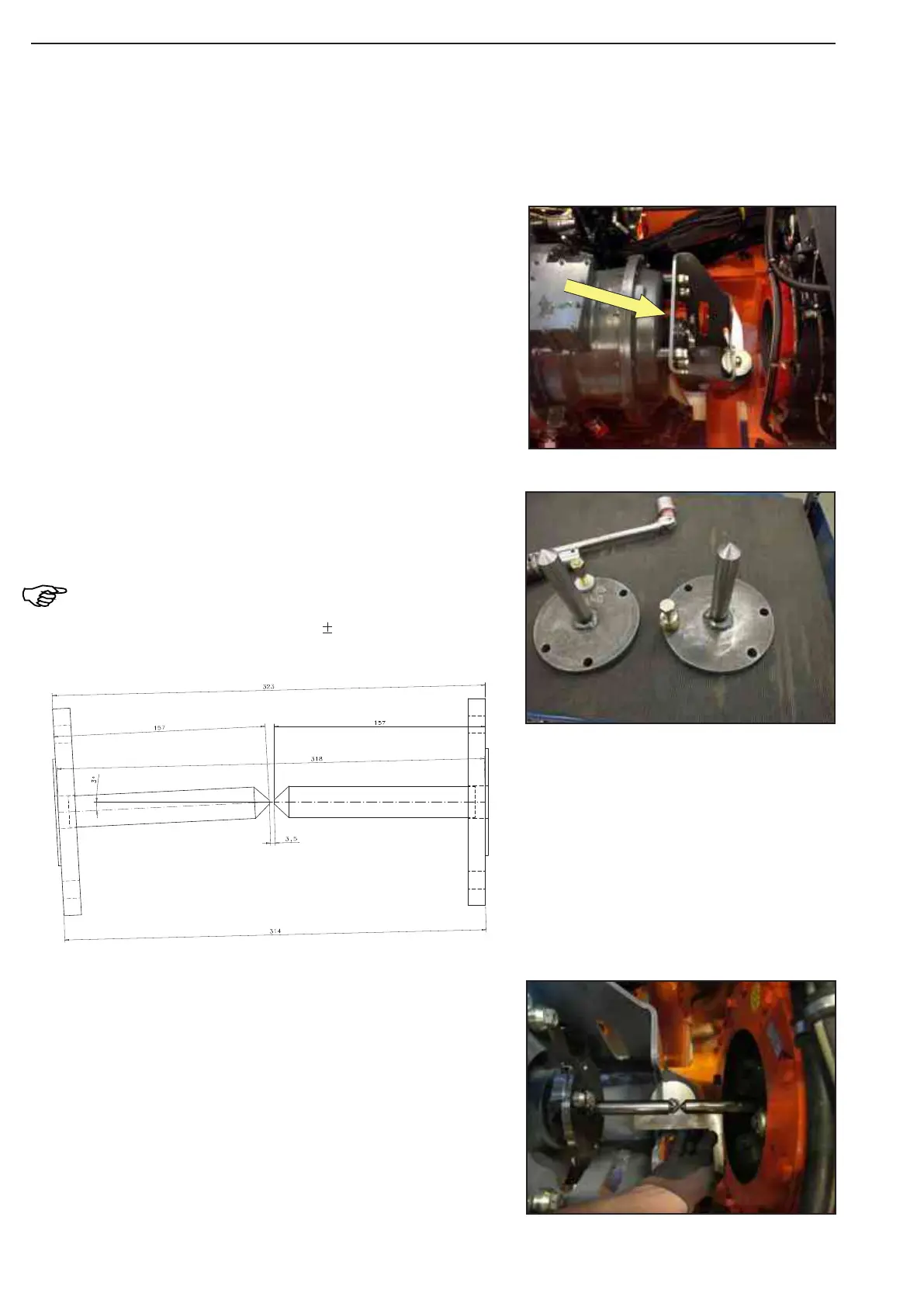

Align transmission and engine. Use calibration tool to check if it’s aligned.
Unmount adjustment tools when calibrated.
Fix adjustment tools to align the transmission and engine.
2x DA30 531192
2x DA40 529833
One on transmission flange and one on engine flange.
Tolerance for engine installation is 3,5mm 1.5 Centerline ø4
Transmission output flange 110mm forward from machined surface
and in center
Assemble the bracket between engine and transmission.
Figure 142
Figure 140
Figure 139
Figure 141
