SHOP MANUAL
TRANSMISSION
Ch 2 page 58 Ch 2 page 59
TRANSMISSION
Assemble the power drive shaft connecting engine and transmission
(04 screws on engine flange 04 screws on transmission flange) with
torque 114Nm.
Adjust rear drive shaft into position on transmission flange.
Assemble the rear drive shaft with 02 screws on each side (04 screws)
Torque: 114 Nm
Assemble rear bracket beam (04 screws). Attach wires and hoses to
their previous state if they were cut.
Assemble Cooling hoses, hydraulic hoses and electrical connectors
back to original position.
Relieve tension on the front frame with 02 jacks then assemble tension
bar with 04 bolts (02 on each side)

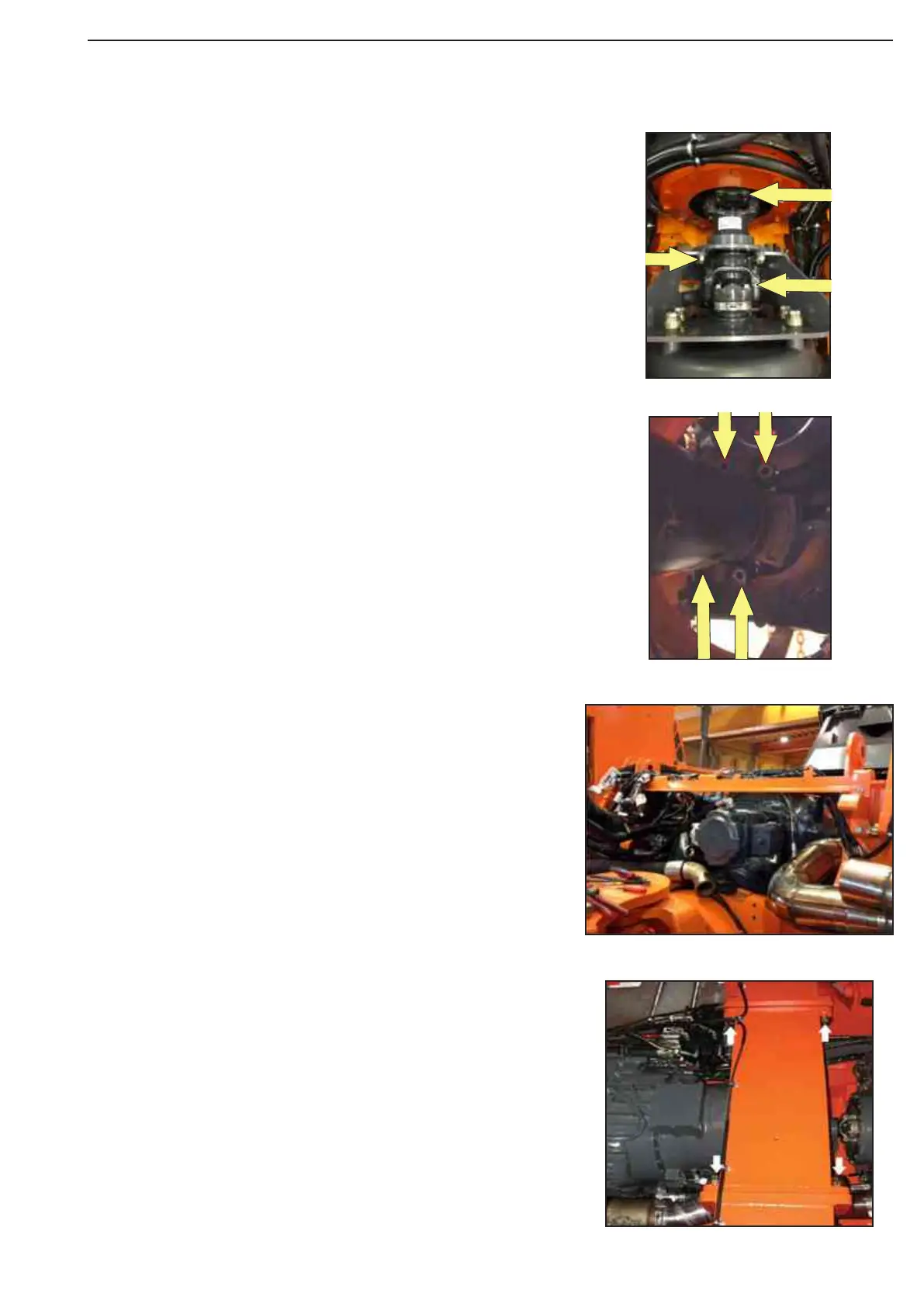

Figure 145
Figure 144
Figure 146
Figure 143
