SHOP MANUAL
DRIVE LINE
Ch 3 page 40 Ch 3 page 41
DRIVE LINE
1
1
2

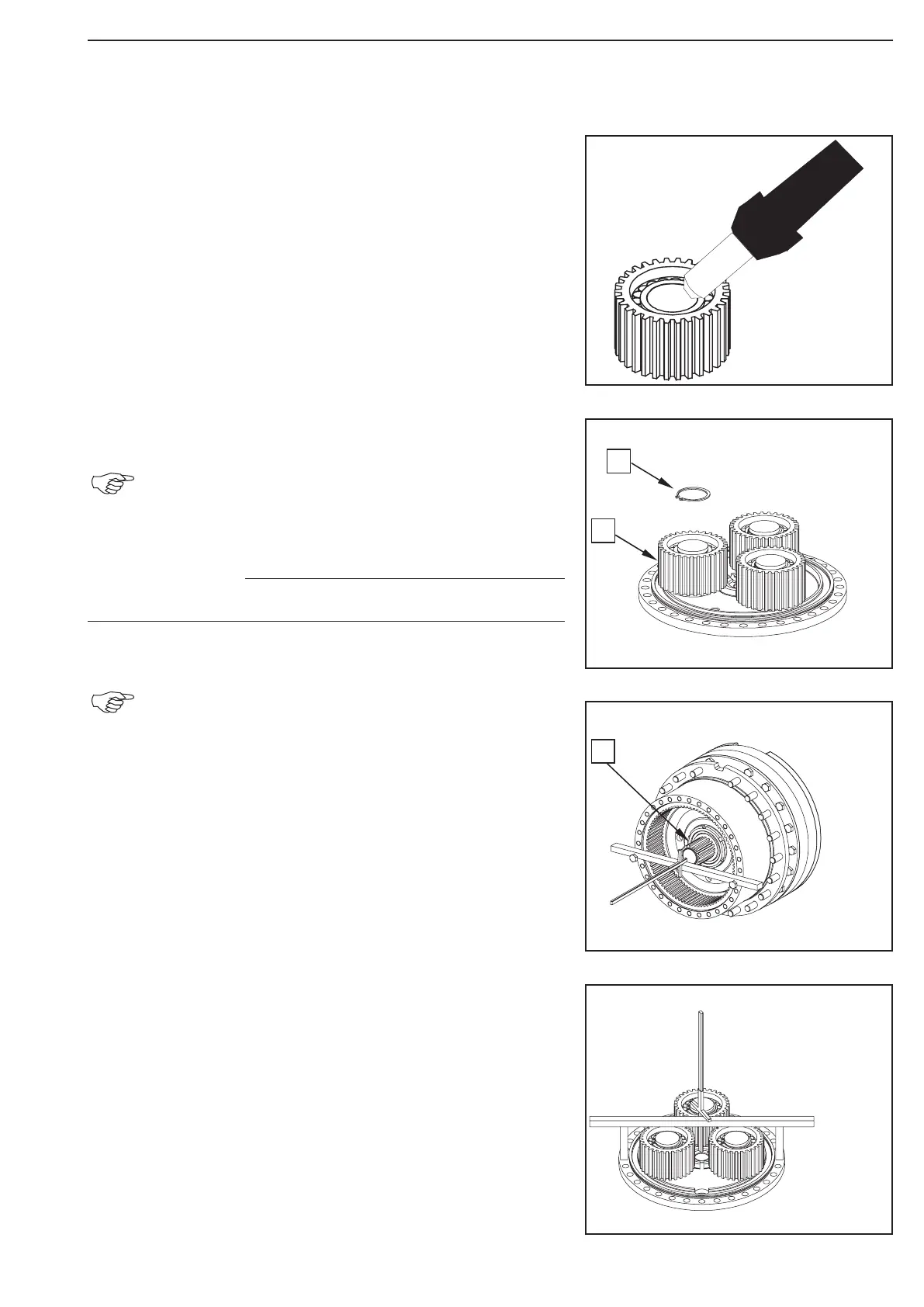

Heat the inner diameter of the roller bearing at the preassembled
planetary gear (approx. 120 ° C).
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
Mount the planetary gears (1) until contact and fasten them by
means of the retaining ring (2).
Observe the installation position! Big radius of the
bearing inner ring must show to the shoulder of the
planetary gear pin (downwards).
Adjust the axial play of the sun gear shaft 0.3 ... 0.8 mm
(Fig. 111 ... 113)
Insert the sun gear shaft (1) until contact.
Determine Dim. I, from the mounting face of the hub to the face
of the sun gear shaft.
Dim. I e.g. ............................................................ 9.40 mm
(S) Straightedge 504170
(S) Digital depth gauge 504175
Measure Dim. II, from the mounting face to the contact surface
of the thrust washer.
Dim. II e.g. .......................................................... 4.00 mm
(S) Digital depth gauge 504175
(S) Block gauges 504174
(S) Straightedge 504170
Wear safety gloves!
NOTE
Figure 112
Figure 111
Figure 110
Figure 109
