SHOP MANUAL
DRIVE LINE
Ch 3 page 122 Ch 3 page 123
DRIVE LINE

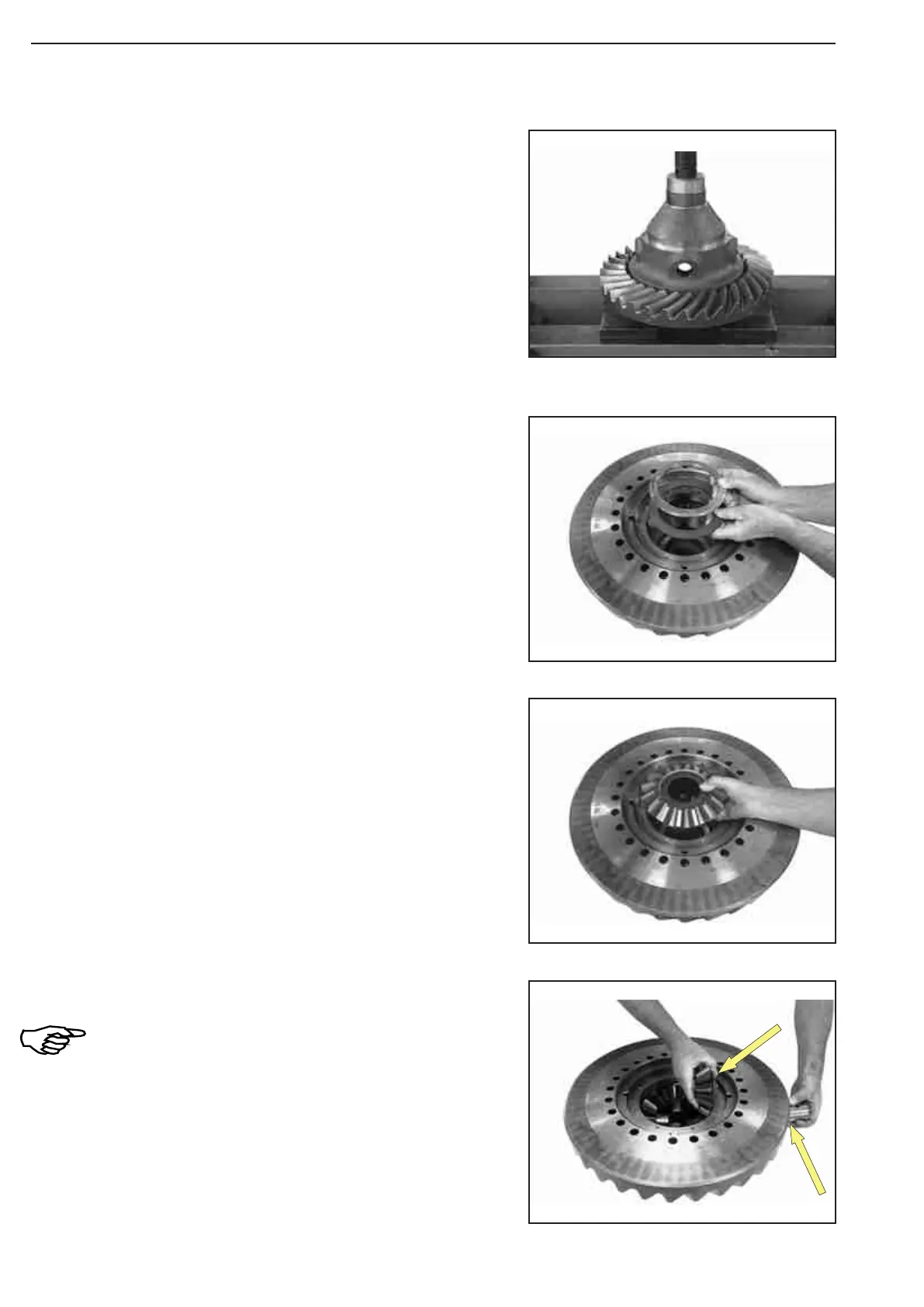

3.1 Multi-disk differential lock DHL-5000
Mount two adjusting screws (S) and press the heated
crown wheel onto differential housing until contact is
obtained.
(S) Locating pins 504722
Insert disk and thrust washer into the differential housing.
Insert axle bevel gear.
Insert the differential bevel gears with thrust washers into
the differential housing and fix them with the spider shaft.
Thrust washers must be positioned with the tabs (see
arrow 1) in the recesses of the differential housing!
Pay attention to the radial installation position of the
spider shafts (fixing holes, arrow 2)!
1
2
Reassembly
Differentials
Figure 360
Figure 359
Figure 358
Figure 357
