DRIVE LINE
Mount disk and fix it with hexagon screws.
Tightening torque (M10/10.9) MA = 50 Nm
Mount second axle bevel gear and thrust washer.
Fix spider shafts with slotted pins (2 pieces/hole).
Press the slotted pins with 180° offset openings into
flush position!!
Reassembly

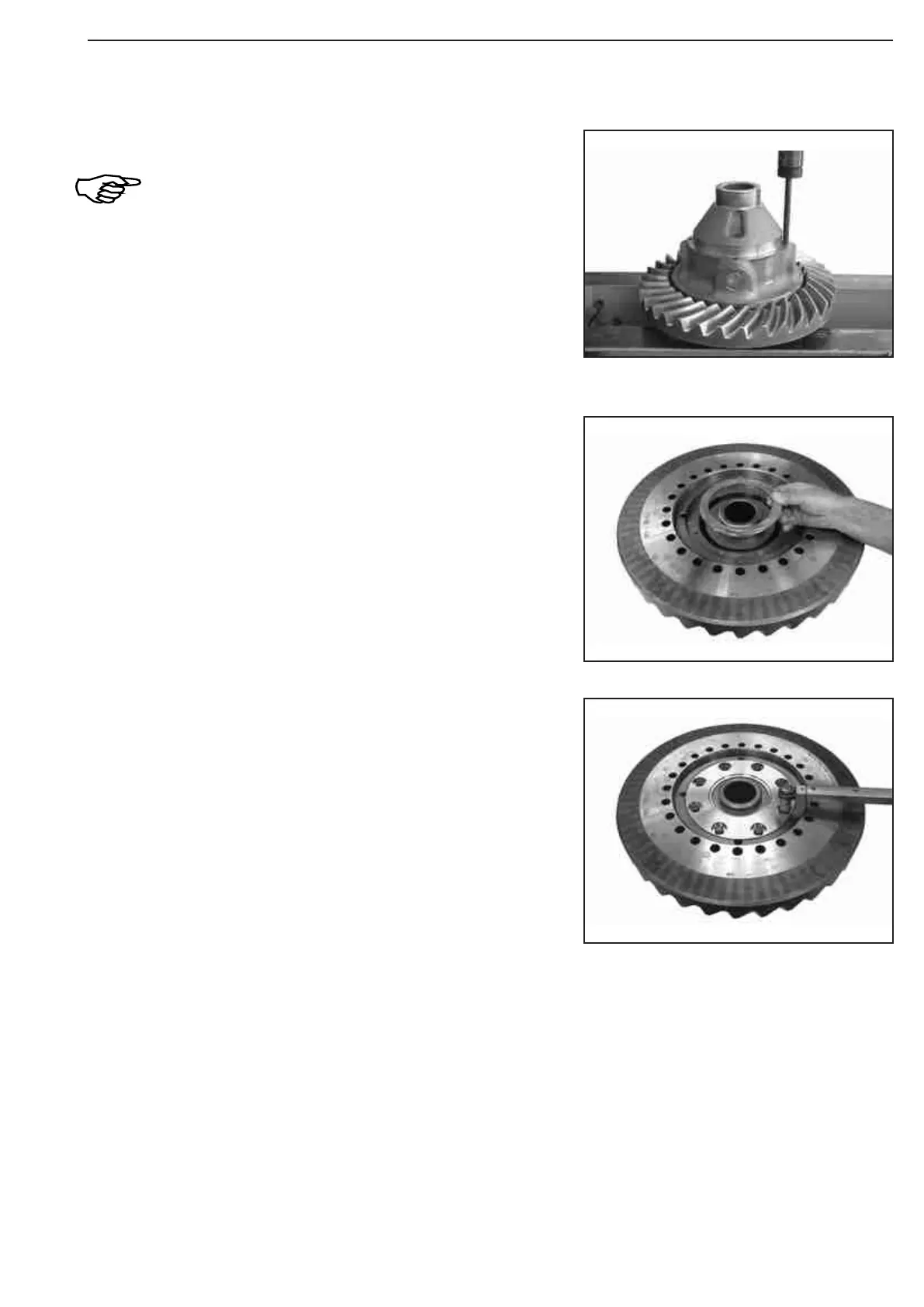

Figure 363
Figure 362
Figure 361
