SHOP MANUAL
DRIVE LINE
Ch 3 page 124 Ch 3 page 125
DRIVE LINE

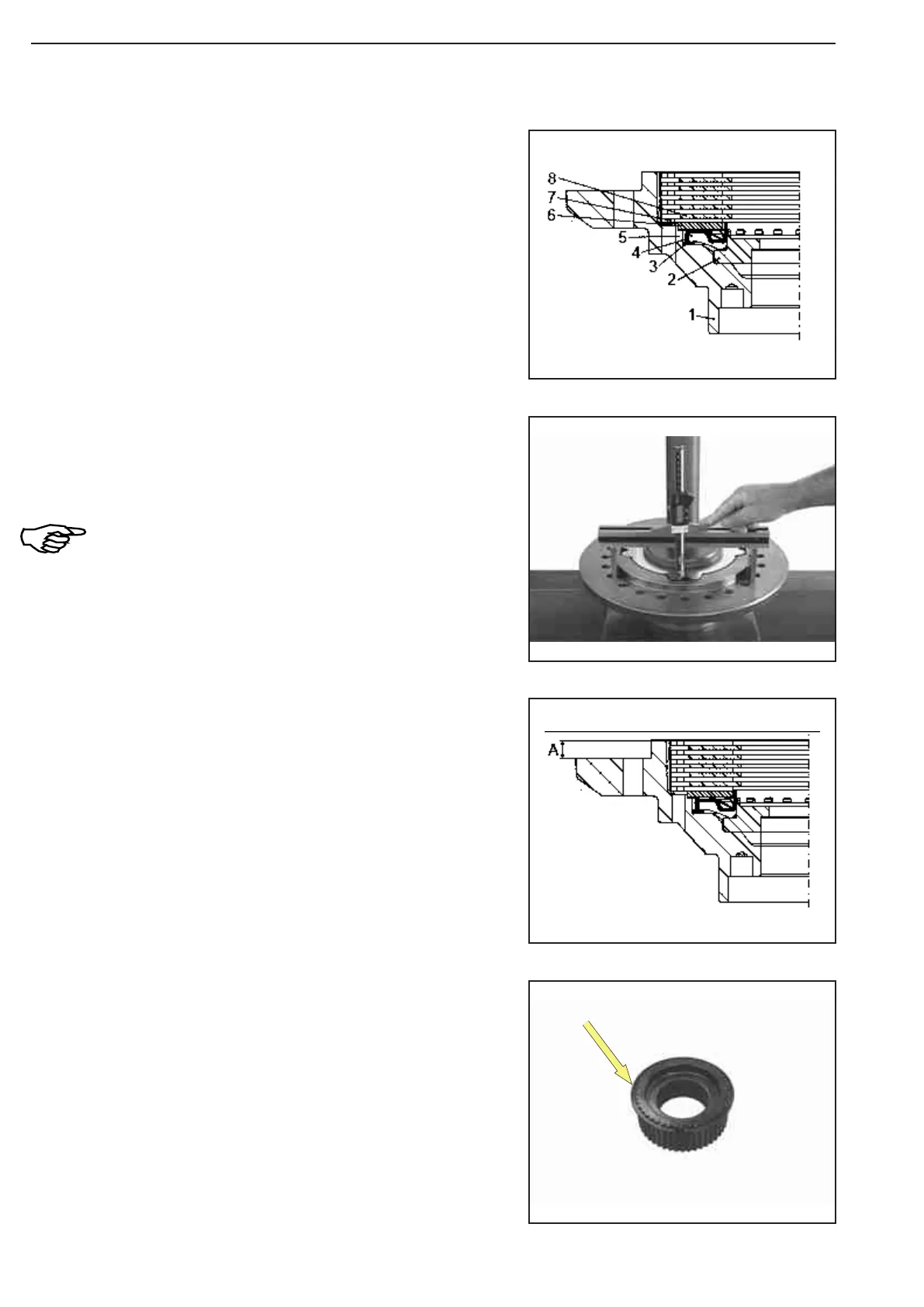

Setting of disk package
Premount single parts according to the adjacent sketch.
1 = Differential cover
2 = Pressure piece
3 = Disk
4 = Cage
5 = Lever (15x)
6 = End plate
7 = Outer disks (optional)
8 = Inner disks
Preload disk package with an axial force of F = 7 t.
Then check the setting dimension „A“ = 15.05 -0.2 mm
from the mounting face of the differential cover to the plane
face of the outer disk (see also below sketch) .
Any deviation from the specified setting dimension
must be corrected with a corresponding outer disk!!
Legend to sketch:
A = Setting dimension = 15.5 -0.2 mm
Engage the snap ring (see arrow) into the annular groove
of the disk carrier.
Reassembly
Figure 365
Figure 366
Figure 367
Figure 364
