DRIVE LINE

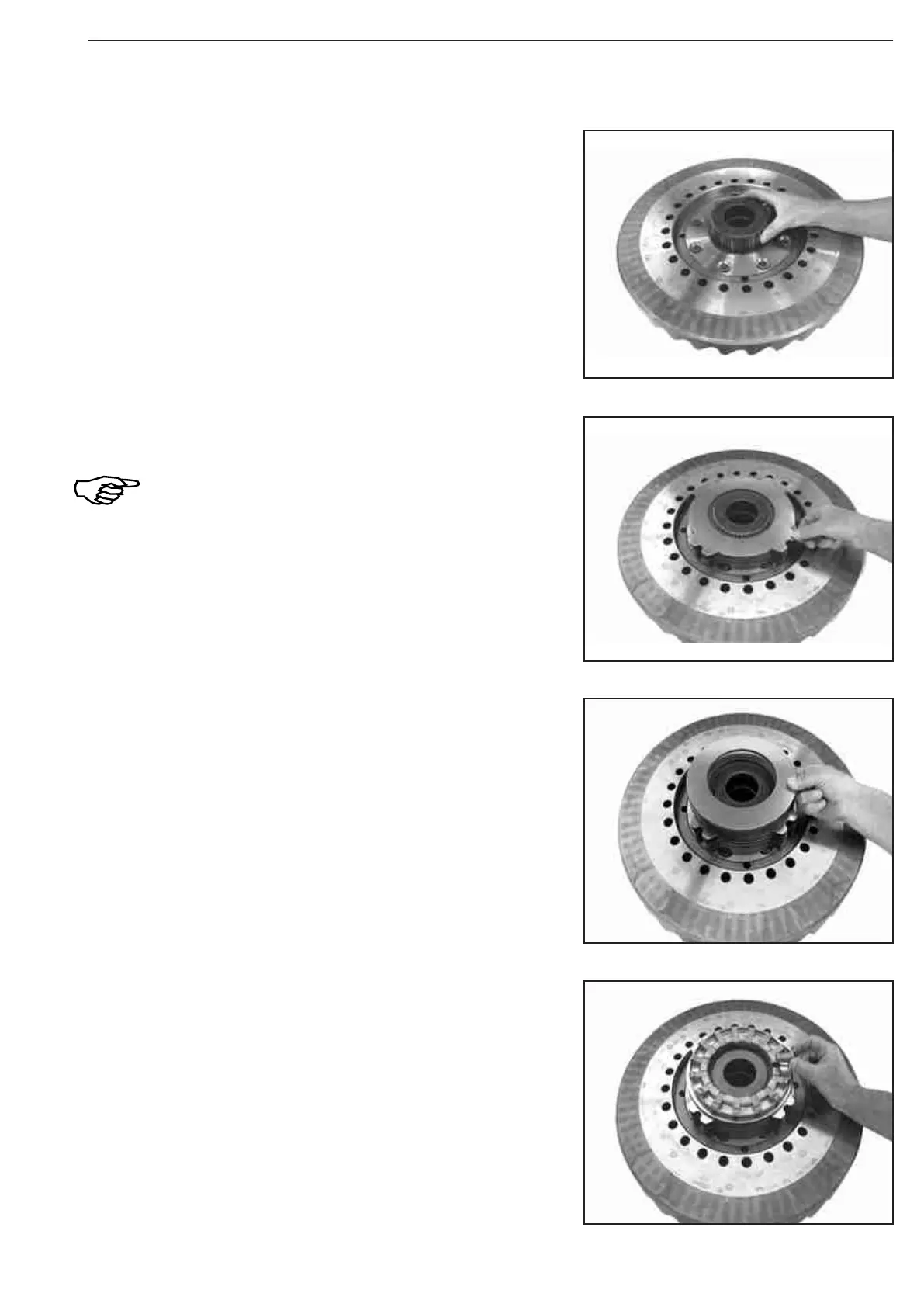

Insert the premounted disk carrier onto the axle bevel gear.
Mount outer and inner disks.
For the number of disks and disk arrangement please
refer to the relating spare parts list!
Pay attention to the radial installation position of the
disk package, as shown on the adjacent Figure!
Insert end plate.
Mount cage and lever (15x).
Reassembly
Figure 371
Figure 370
Figure 369
Figure 368
