3.2 Multi-disk differential lock DL-5000
Mount two locating pins (S) and press the heated crown
wheel onto the differential housing until contact is obtained.
(S) Locating pins 504722
Insert thrust washers into the differential housing.
Mount outer and inner disks in alternating order, starting
with an outer disk.
The installation clearance of the internal parts is
corrected by mounting outer disks with different
thicknesses!
The difference in thickness between the left and the
right disk package may only be 0.1 mm at maximum!!
Place the pressure ring.
Reassembly

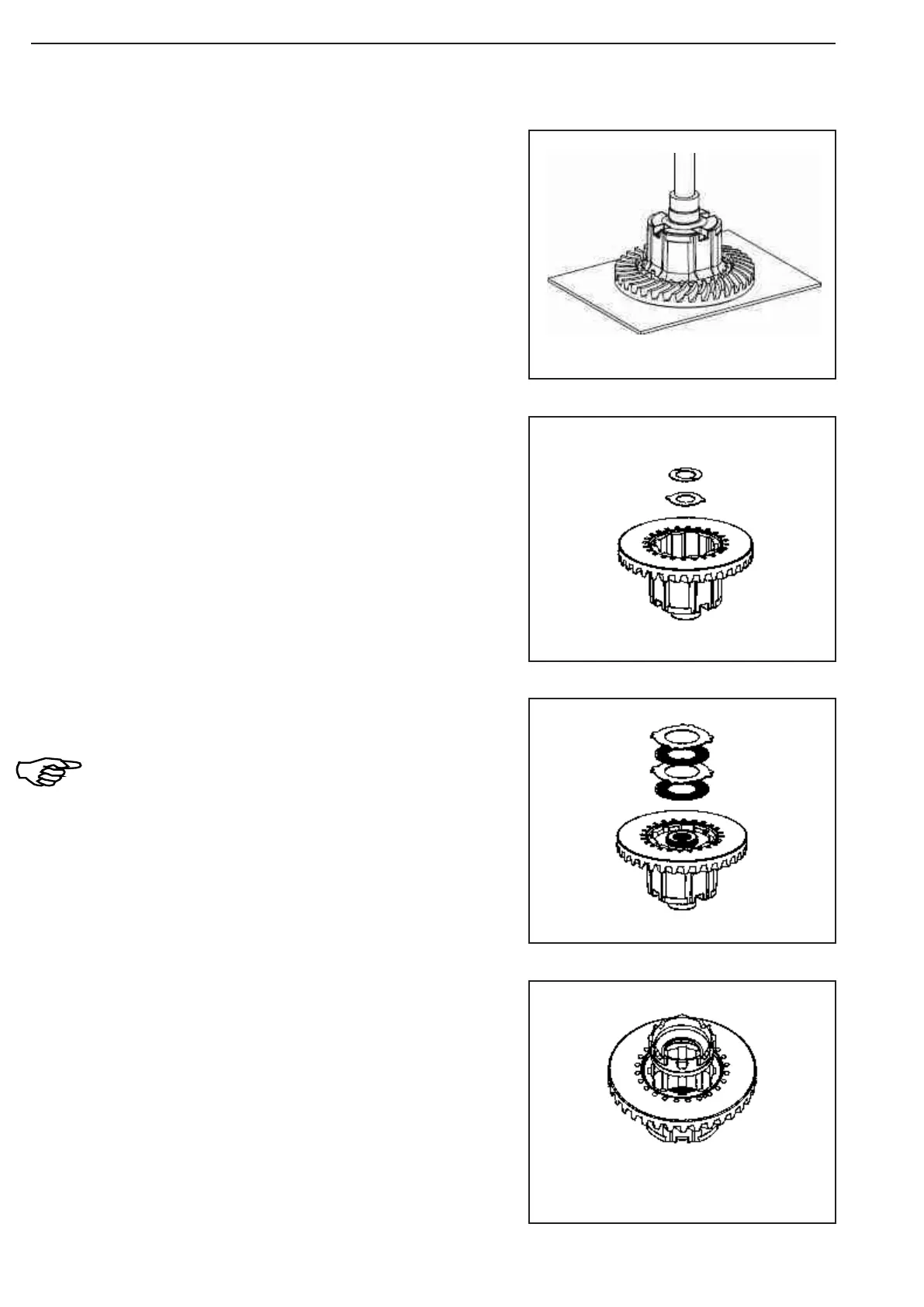

Figure 383
Figure 382
Figure 381
Figure 380
