128 Upgrade and Maintenance Manual RX2540 M4
6.2.1.2 Removing the dummy cover

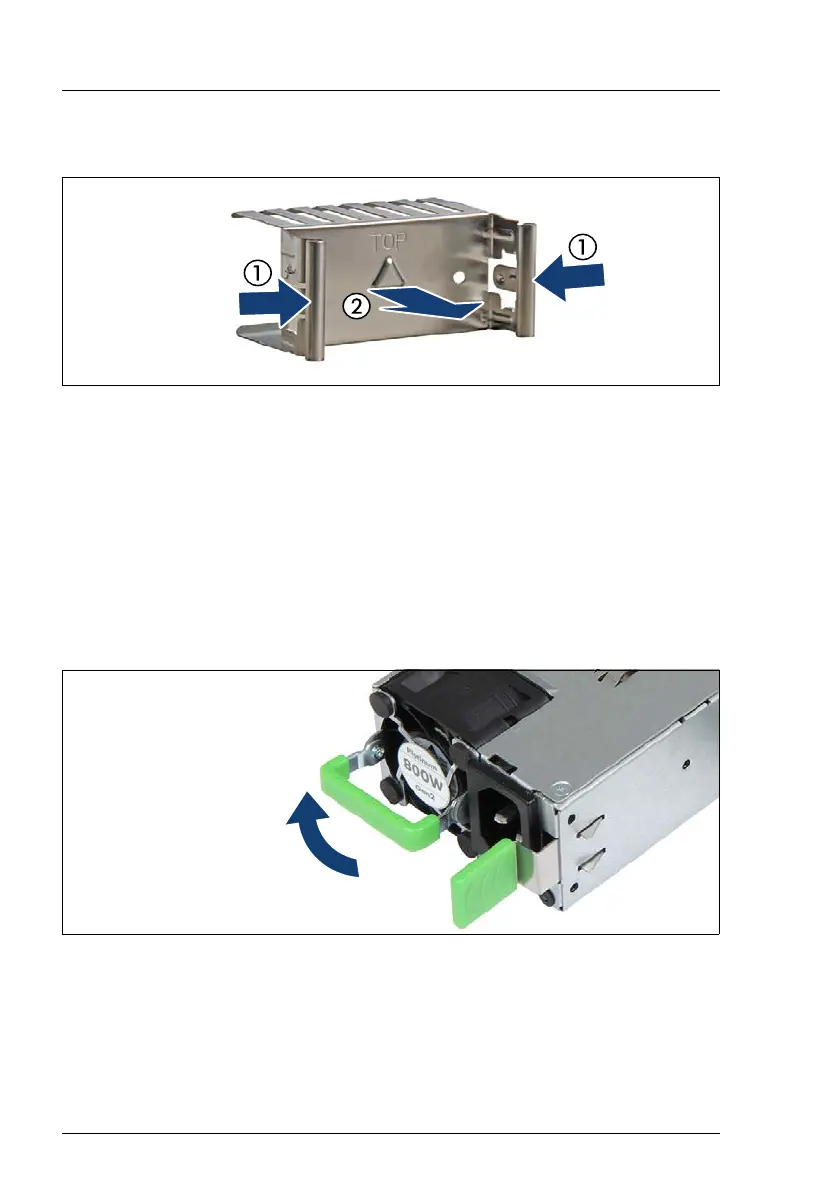

Figure 38: Removing the dummy cover
Ê Press in on both release latches (1) and remove the PSU dummy cover (2).
V CAUTION!
Keep the dummy cover for future use. If a PSU is removed and not
immediately replaced by a new one, a dummy cover must be installed in
the bay again to comply with applicable EMC regulations and satisfy
cooling requirements.
6.2.1.3 Installing a hot-plug PSU
Figure 39: Folding up the handle
Ê Push the handle of the PSU halfway upward in the direction of the arrow.
