RX2540 M4 Upgrade and Maintenance Manual 519
System board and components

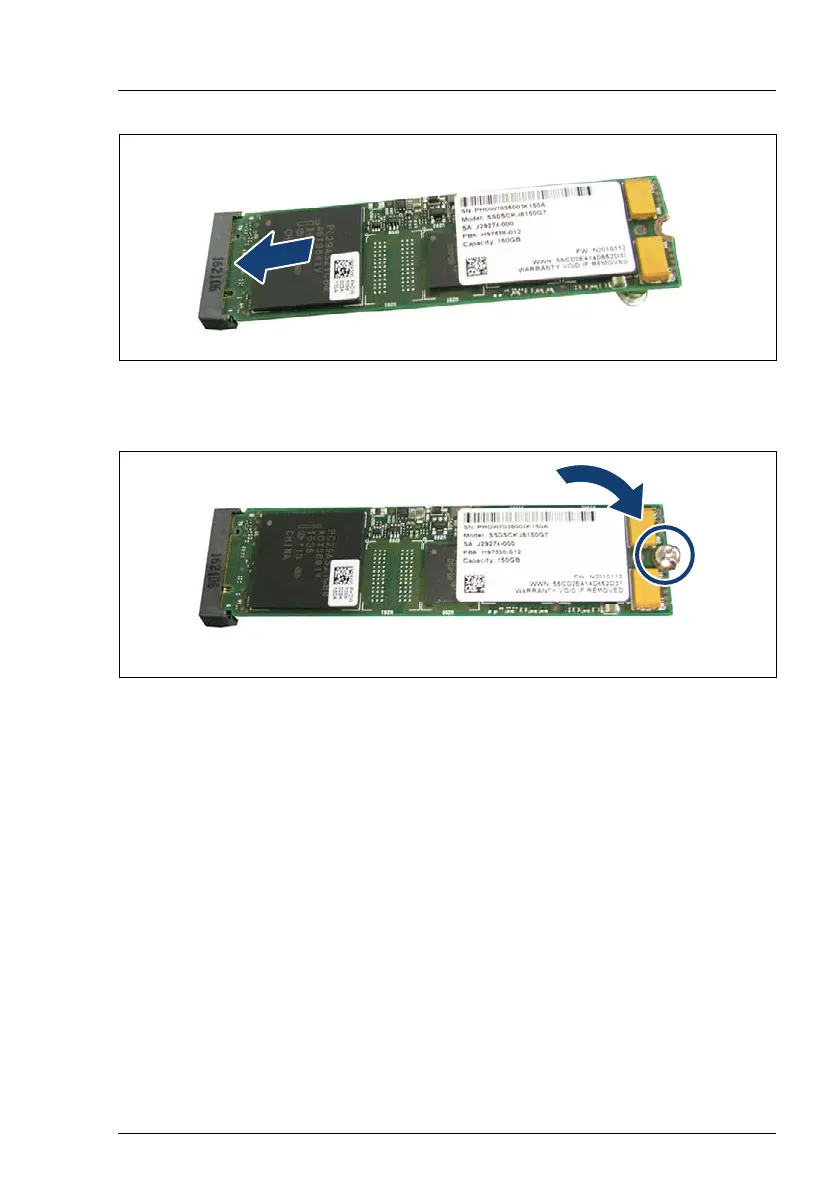

Figure 385: Installing the M.2 SSD
Ê With the label facing up, insert the M.2 SSD into the M.2 slot at a slight angle.
Figure 386: Fastening the M.2 SSD
Ê Fasten the M.2 SSD with the screw (see circle).
16.5.1.3 Concluding steps
Ê If applicable, install the riser module 1, see section "Handling riser modules"
on page 71.
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
