376 Upgrade and Maintenance Manual RX2540 M4
Installing the CPU frame on the heat sink

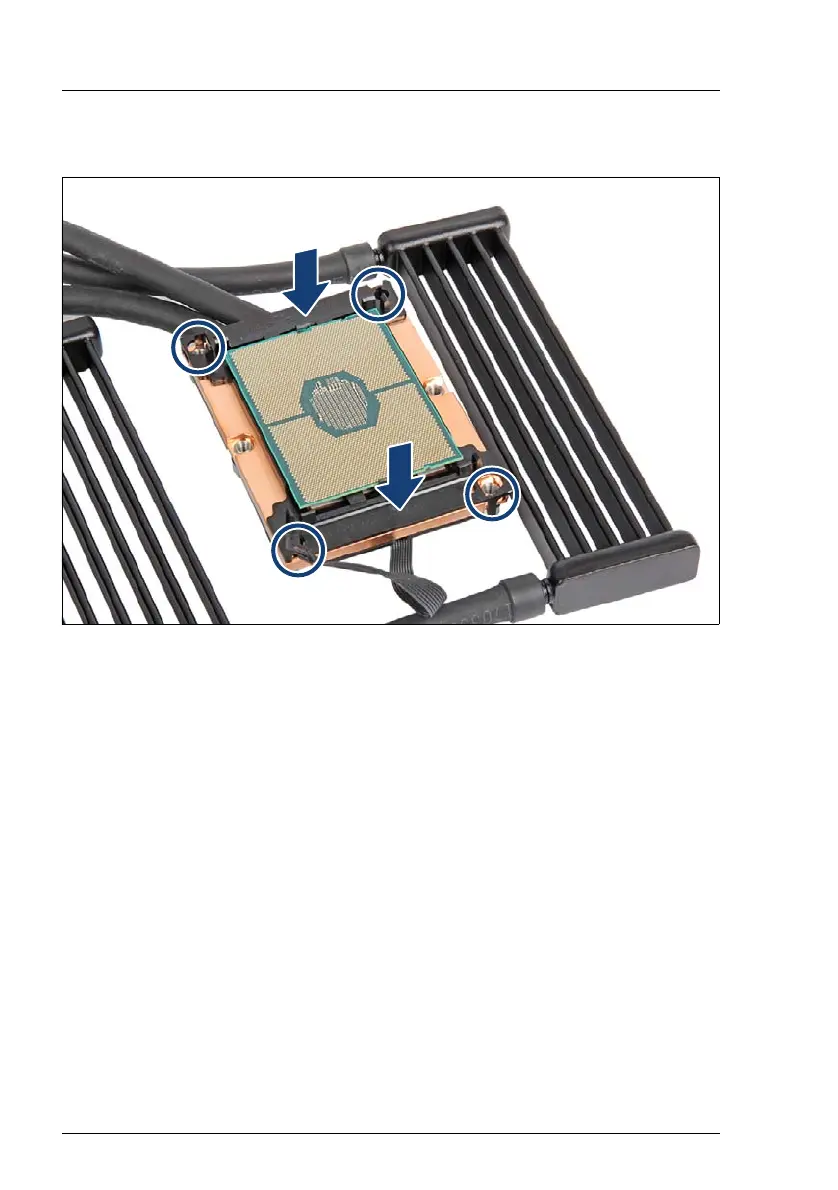

Figure 257: Installing the CPU frame on the heat sink (B)
Ê Place the CPU frame onto the heat sink of the LC device.
I Ensure that you position the CPU frame in the right position. There is
only one position which fits.
Ê Press down the CPU frame (see arrows).
The frame must click into place (see circles).
12.2.5 Installing the LC device
Ê If applicable, install the memory spacers, see section "Installing a memory
spacer" on page 389.
