Basic hardware procedures
4.8.1 Riser cards
4.8.1.1 Removing the riser card

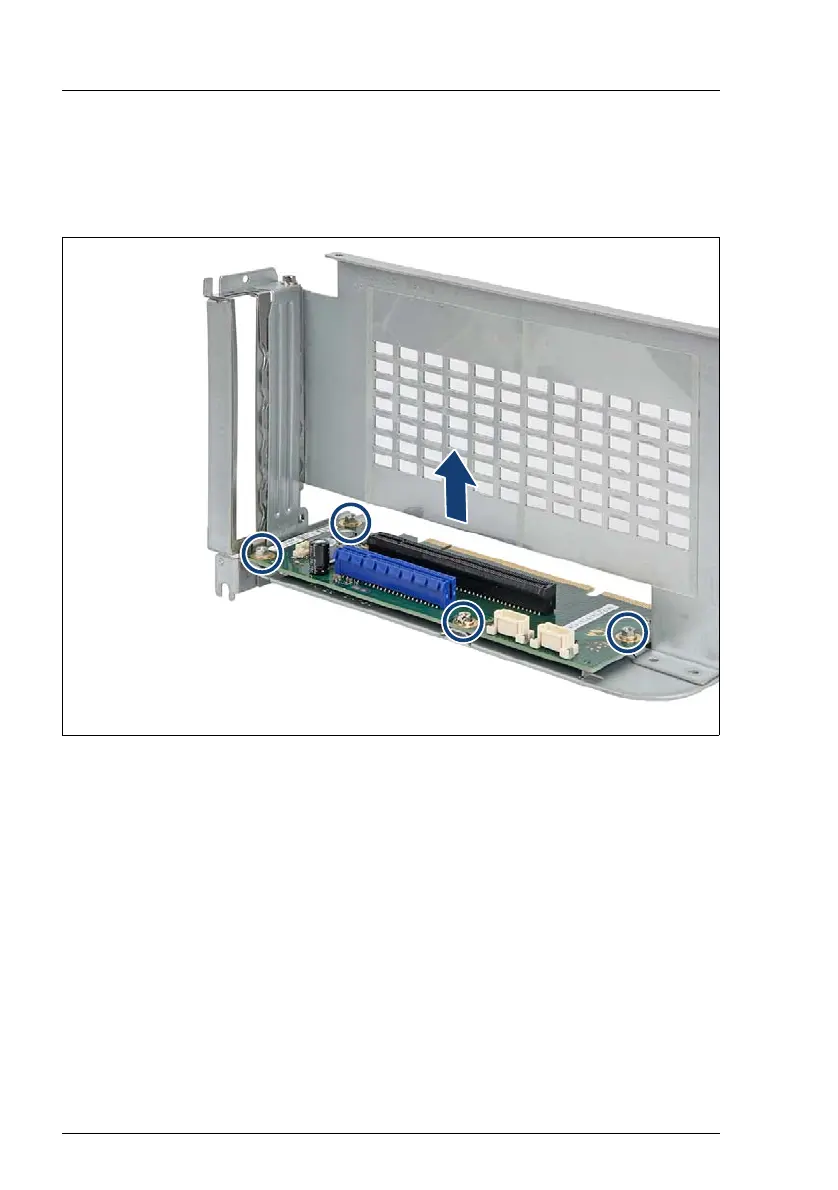

Figure 16: Removing the riser card
Ê Remove the four screws (see circles).
Ê Carefully remove the expansion card from its slot (see arrow).
