RX2540 M4 Upgrade and Maintenance Manual 423
13.4.2.2 Removing the LTO drive
LTO drive 4/5/6/7

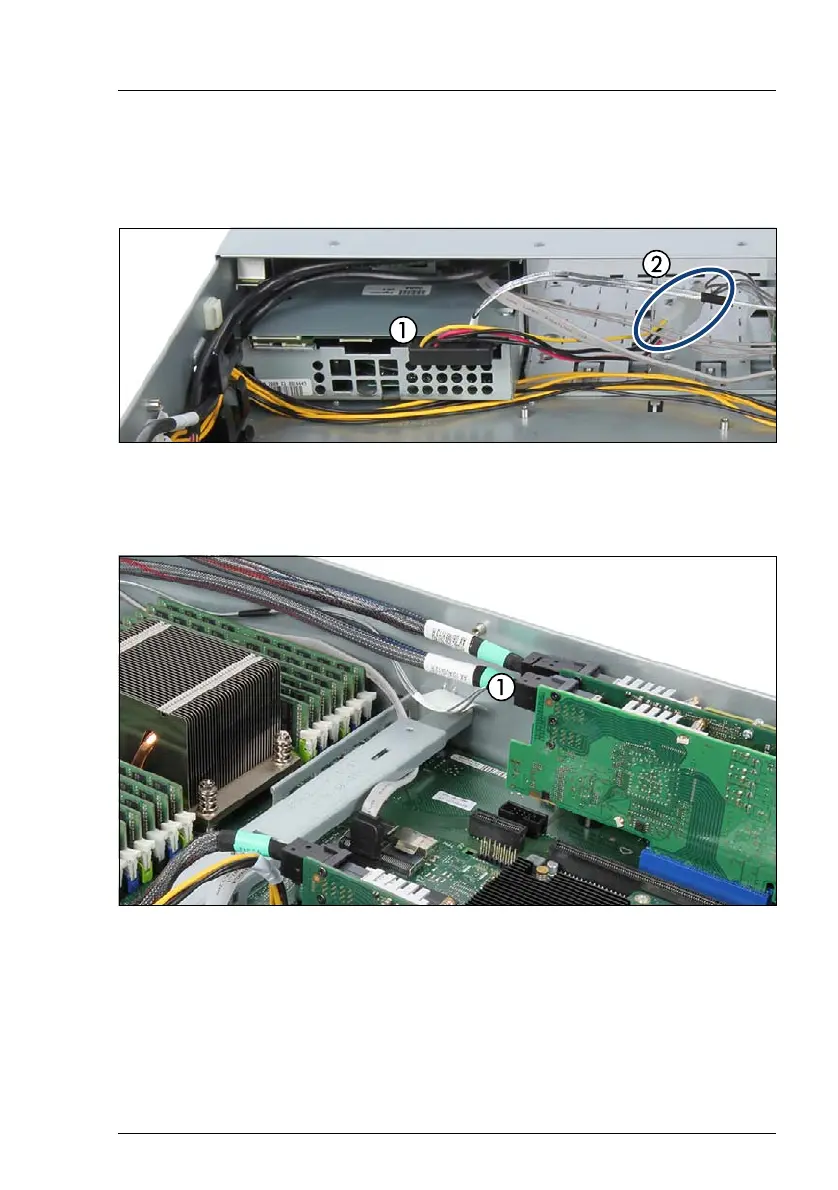

Figure 303: Disconnecting the cables from the LTO drive
Ê Disconnect the PWR/SAS cable (C36) from the LTO drive (1) and the power
cable (C17) (2).
Figure 304: Disconnecting the cables from the PSAS controller
Ê Disconnect the SAS connector of the cable (C36) from the "MLC1"
connector of the PSAS controller (1).
