RX2540 M4 Upgrade and Maintenance Manual 349
Ê Always check, if CPU type and heat sink type are compatible.

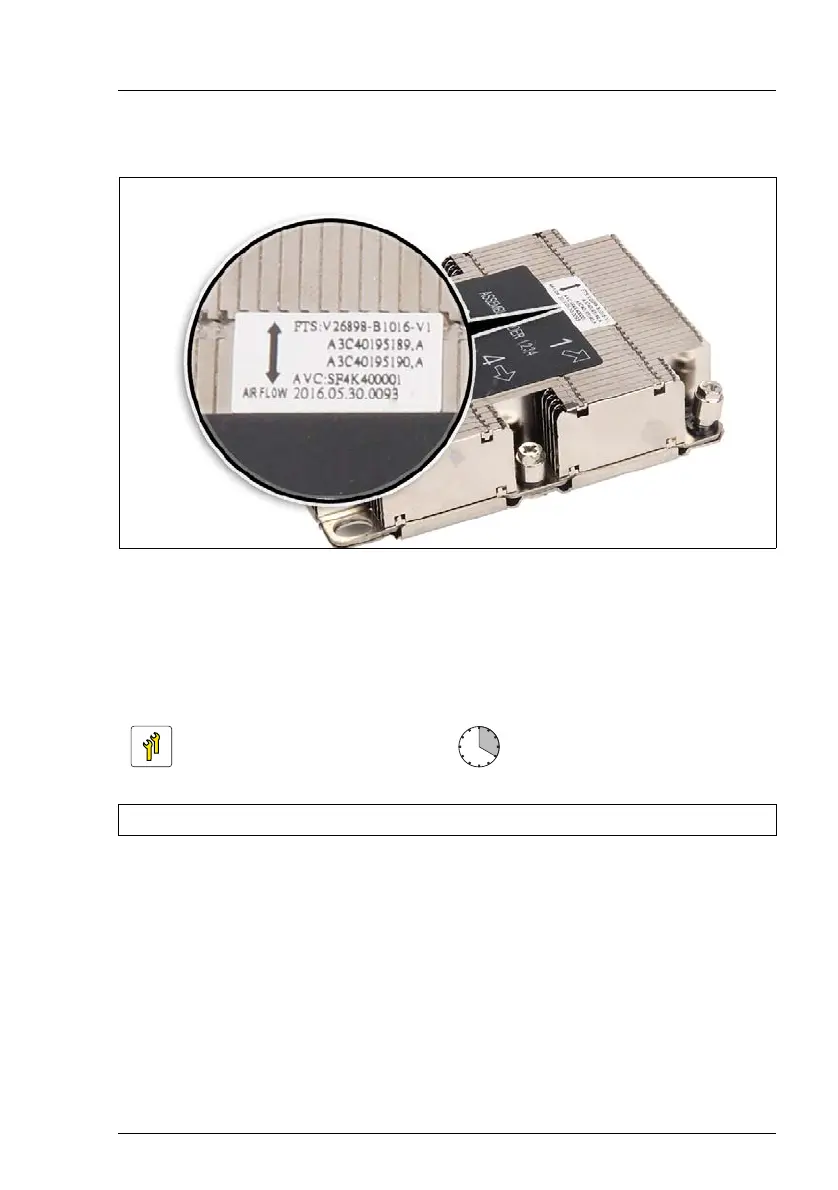

Figure 229: Example heat sink label
The heat sink type is printed on the label.
11.2 Upgrading to 2 CPUs configuration
V CAUTION!
– CPUs are modules which are extremely sensitive to electro-static
discharges and therefore must always be handled with care. After a
CPU has been removed from its protective sleeve or from its socket,
place it with its smooth side down on a non-conducting, antistatic
surface. Never push a CPU over a surface.
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Software: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
