160 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)
Cabling with RAID controller

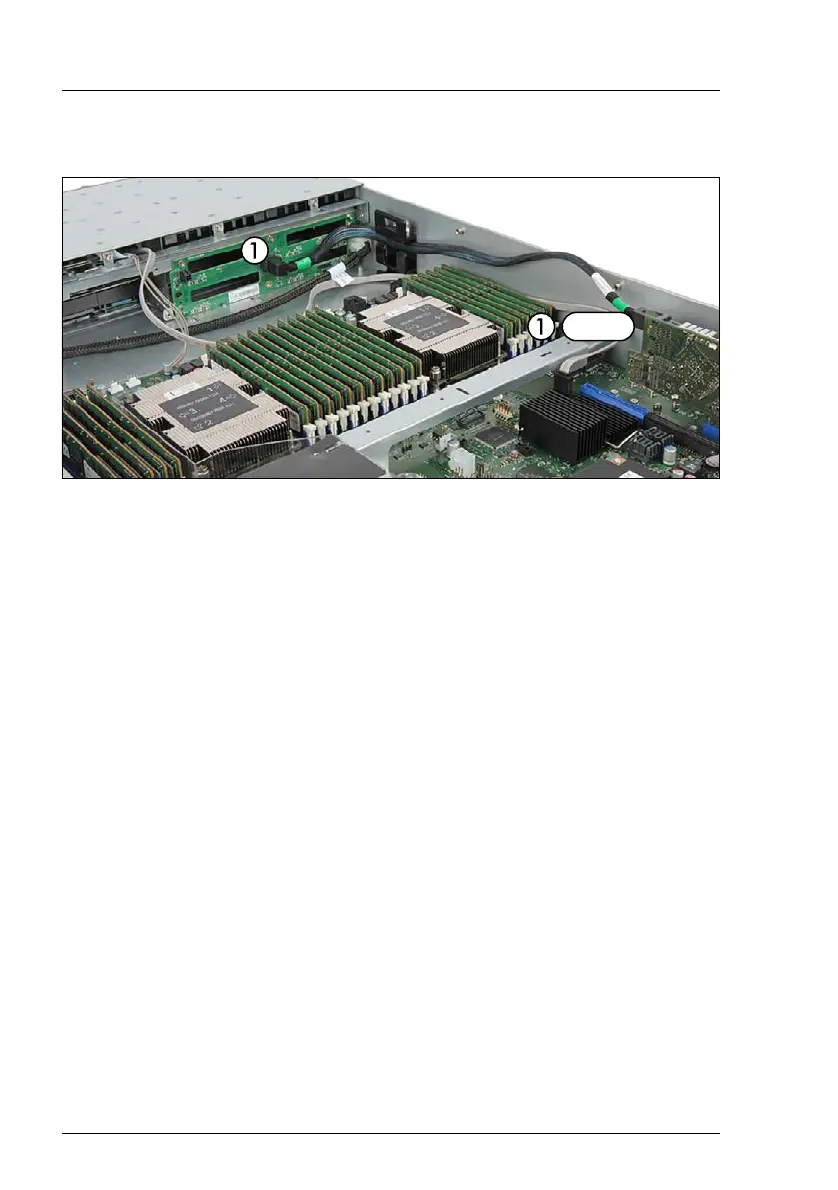

Figure 70: Connecting the first 3.5-inch HDD backplane to the RAID controller
Ê Connect the cable of the first HDD backplane to the connector "MLC1" on
the RAID controller (1).
I For the cable plan, see chapter "Appendix B" on page 573.
7.3.8.7 Concluding steps
Ê "Installing the fan holder" on page 234
Ê Insert all HDD modules, see section "Installing a 3.5-inch HDD module" on
page 149.
I Ensure that you install the HDD module in the bay it was located
before the HDD backplane replacement.
Ê "Reassembling" on page 63
Ê "Installing 3.5-inch HDD modules" on page 148
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
