RX2540 M4 Upgrade and Maintenance Manual 227
Hard disk drives (HDD) and solid state drives (SSD)
7.5.3.4 Installing the rear air grid (left hand)

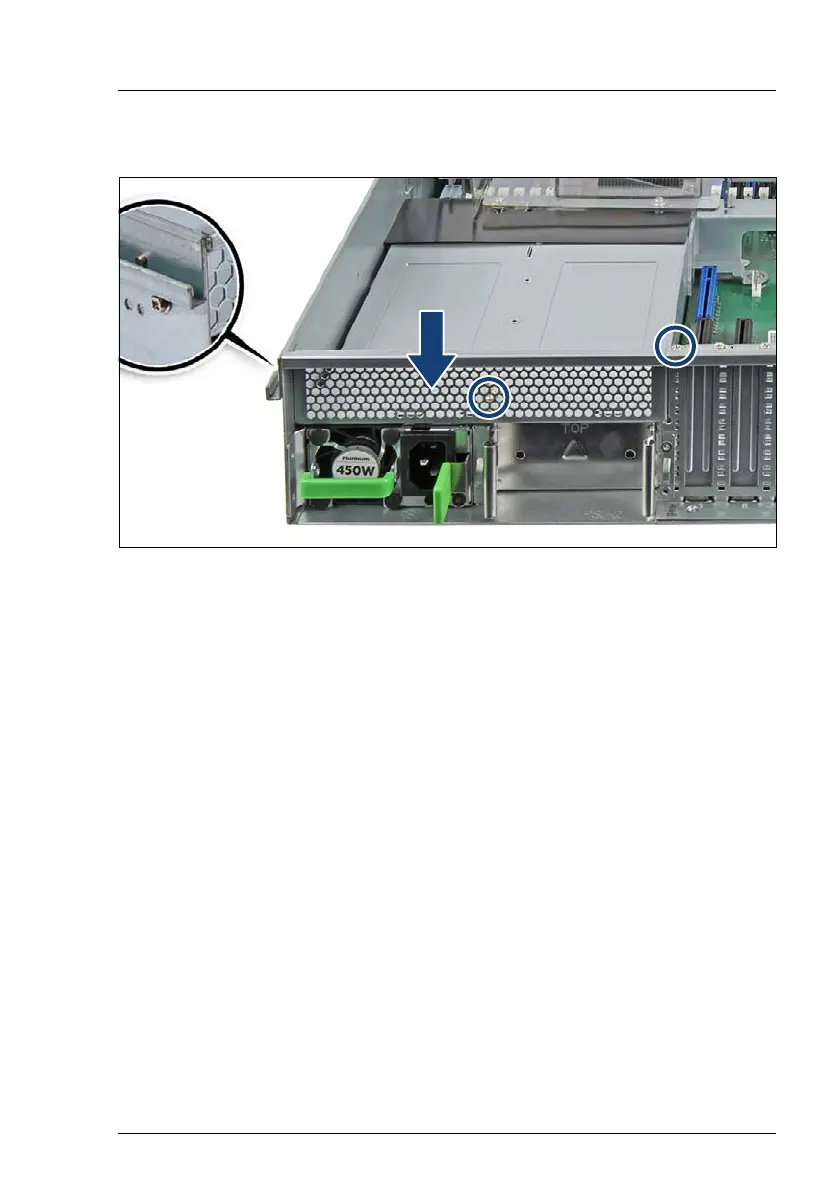

Figure 138: Installing the rear air grid
Ê Insert the rear air grid.
Ê Fasten the rear air grid with three screws (see circles and close-up).
7.5.3.5 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
