RX2540 M4 Upgrade and Maintenance Manual 173
Hard disk drives (HDD) and solid state drives (SSD)
7.3.11.4 Installing the new SAS expander board

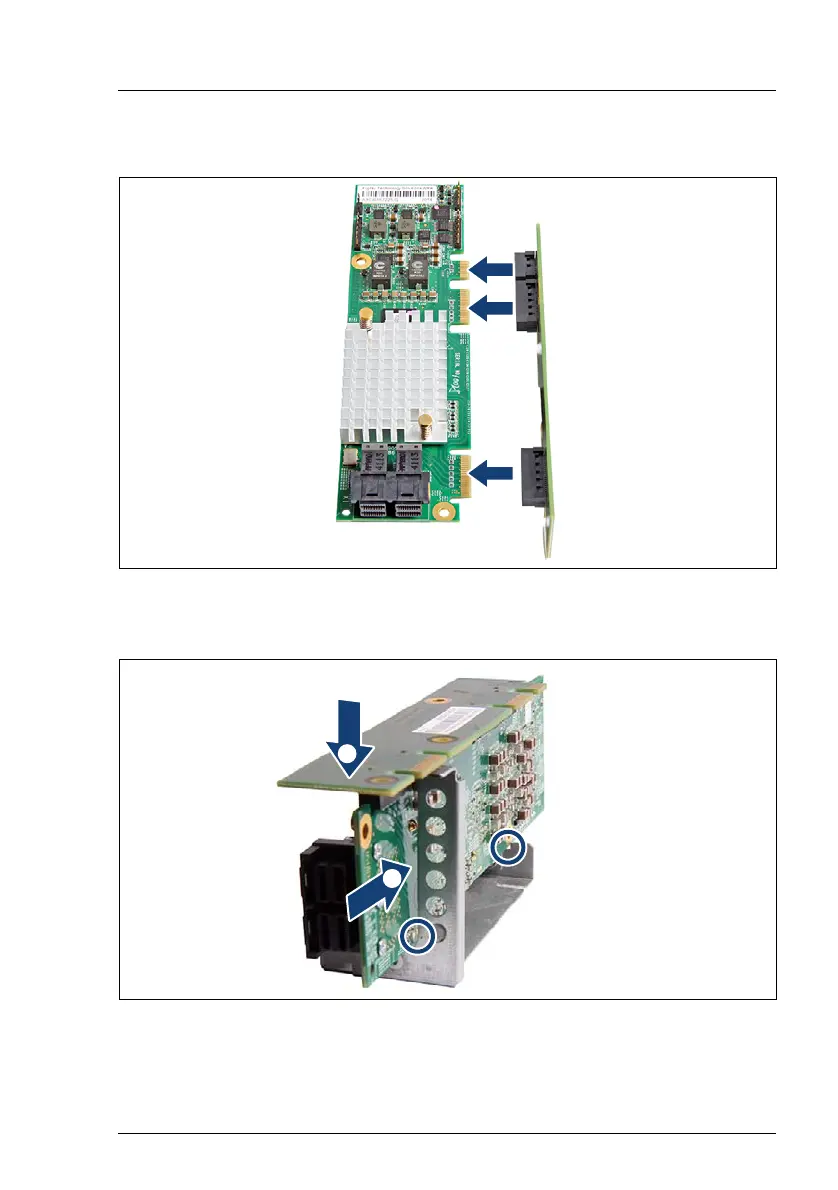

Figure 87: Connecting the connector card
Ê Connect the connector card with the SAS expander board.
Figure 88: Installing the mounted SAS expander board
Ê Position the mounted SAS expander board in the two recesses (see circles)
of the SAS expander board holder (1).
햲
햳
