220 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)

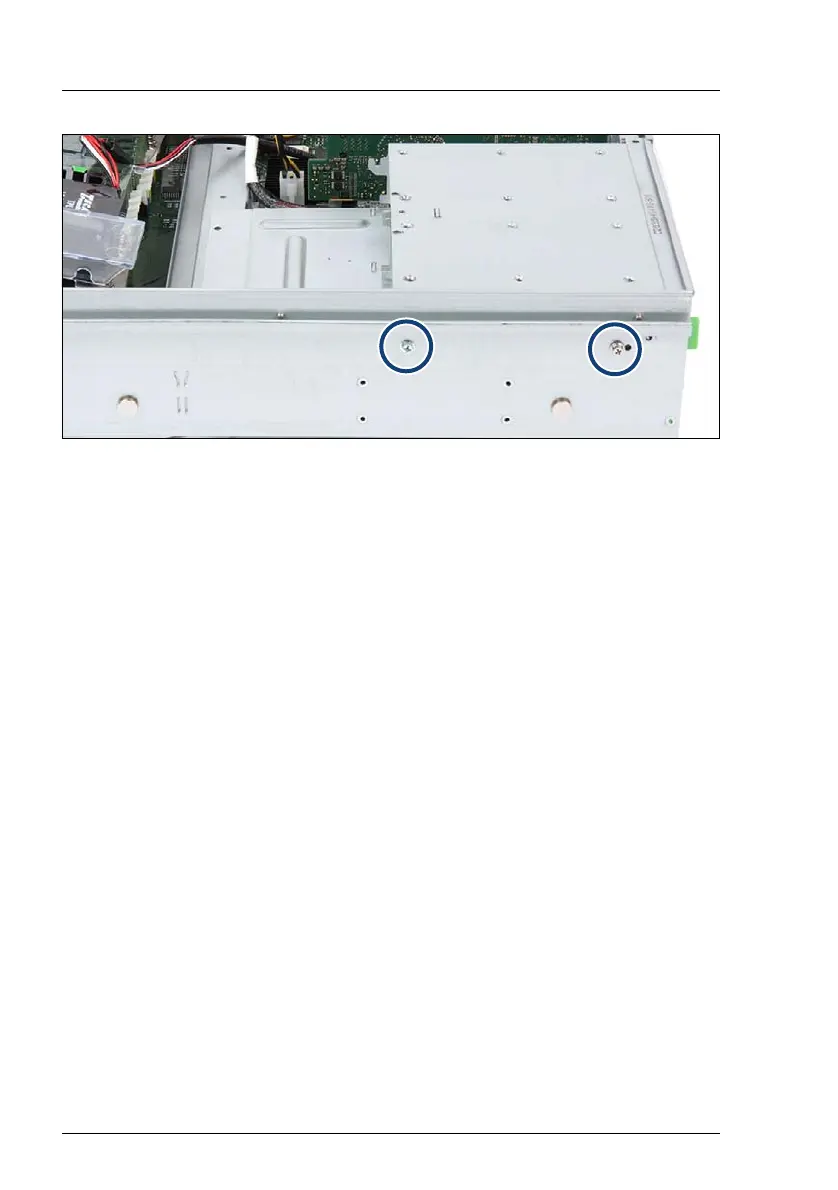

Figure 133: Rear HDD cage - 2 screws on the side
Ê Fasten the rear HDD cage with 2 screws on the side (see circles).
7.5.2.4 Installing the rear backplane
Ê If applicable, install the rear backplane, see section "Installing the rear
backplane" on page 213.
7.5.2.5 Installing the controller
Ê If applicable, install the controller, see section "Installing an expansion card"
on page 253.
7.5.2.6 Connecting cables to the rear extension box
I For the cable plan, see chapter "Appendix B" on page 573.
I The cabling of the backplane depends on the backplane and the
controller installed.
Connecting the cables to the rear backplane
Ê Connect the cables to the rear backplane, see section "Connecting cables
to the rear backplane" on page 214.
