RX2540 M4 Upgrade and Maintenance Manual 413

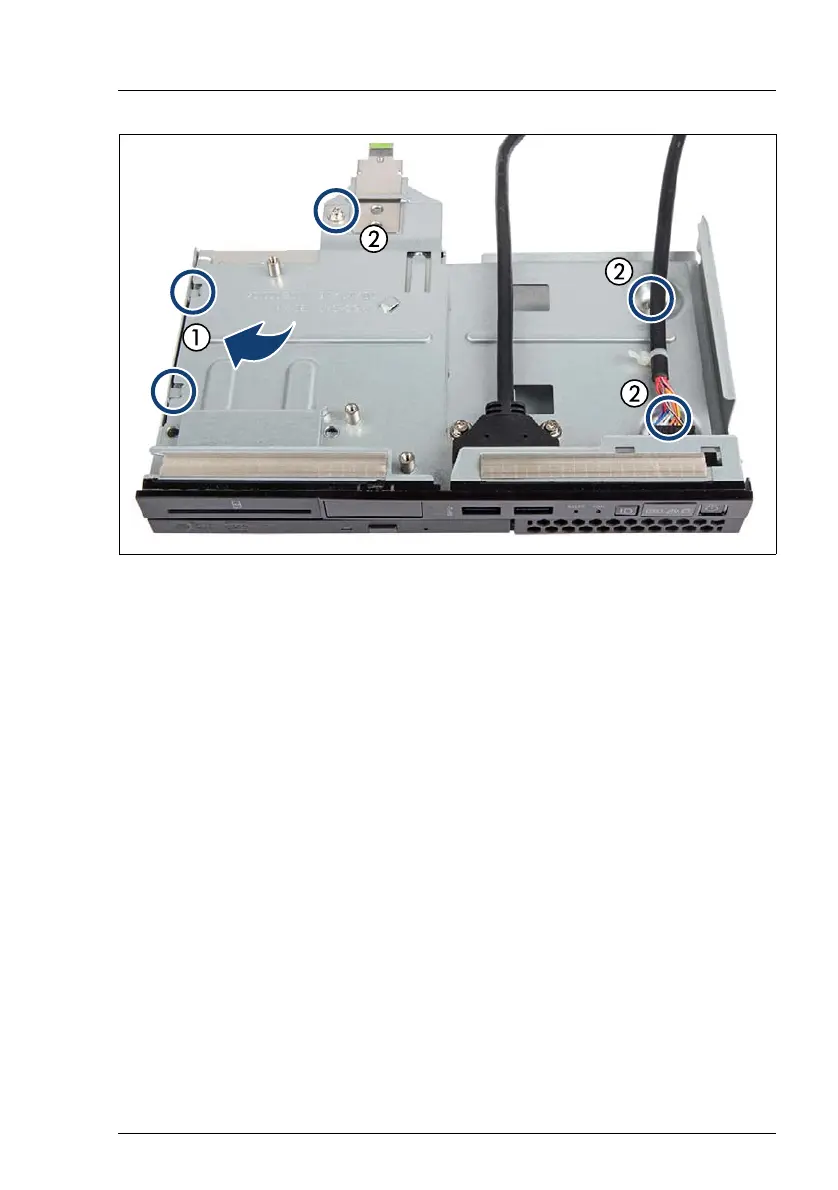

Figure 295: Installing the cover plate
Ê Position the cover plate of the front panel module at a slight angle into the
two recesses and push it down (1).
Ê Fasten the three screws (2).
Ê Connect the front panel cable.
13.3.2.4 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Resuming BitLocker functionality" on page 112
