148 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)
7.3.5 Installing 3.5-inch HDD modules
7.3.5.1 Preliminary steps
Ê Locate the correct drive bay, see section "3.5-inch HDD configurations" on
page 145.
7.3.5.2 Removing a 3.5-inch dummy module
I In configuration with only one 4x 3.5-inch HDD backplane dummy locks
are installed to make it impossible to equip the bays with no HDD
backplane behind.

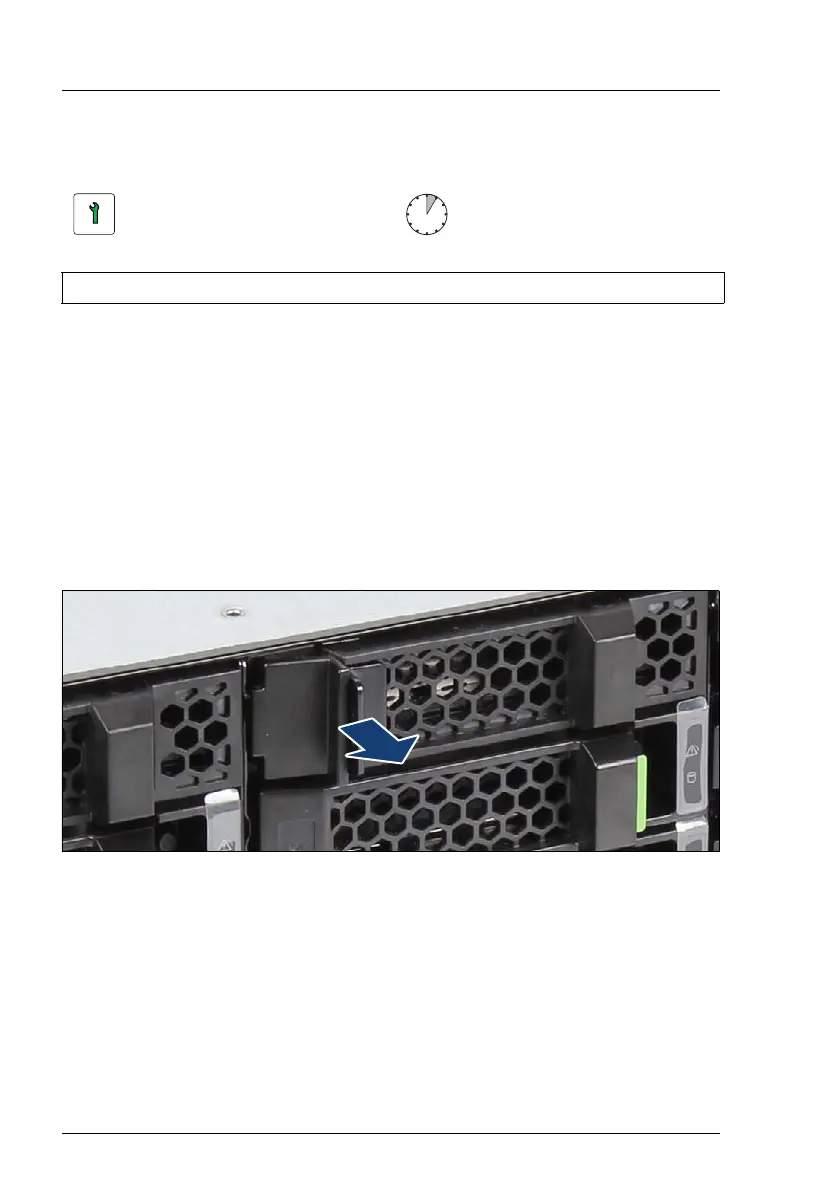

Figure 57: Removing the dummy lock
Ê Only valid after upgrading the server with the second HDD backplane: pull
the dummy lock out of the dummy cover. Please be aware that the dummy
lock can be damaged.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
