218 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)
7.5.2.3 Installing the rear HDD cage
I In this description the PCIe SSD backplane type 1 is already installed.

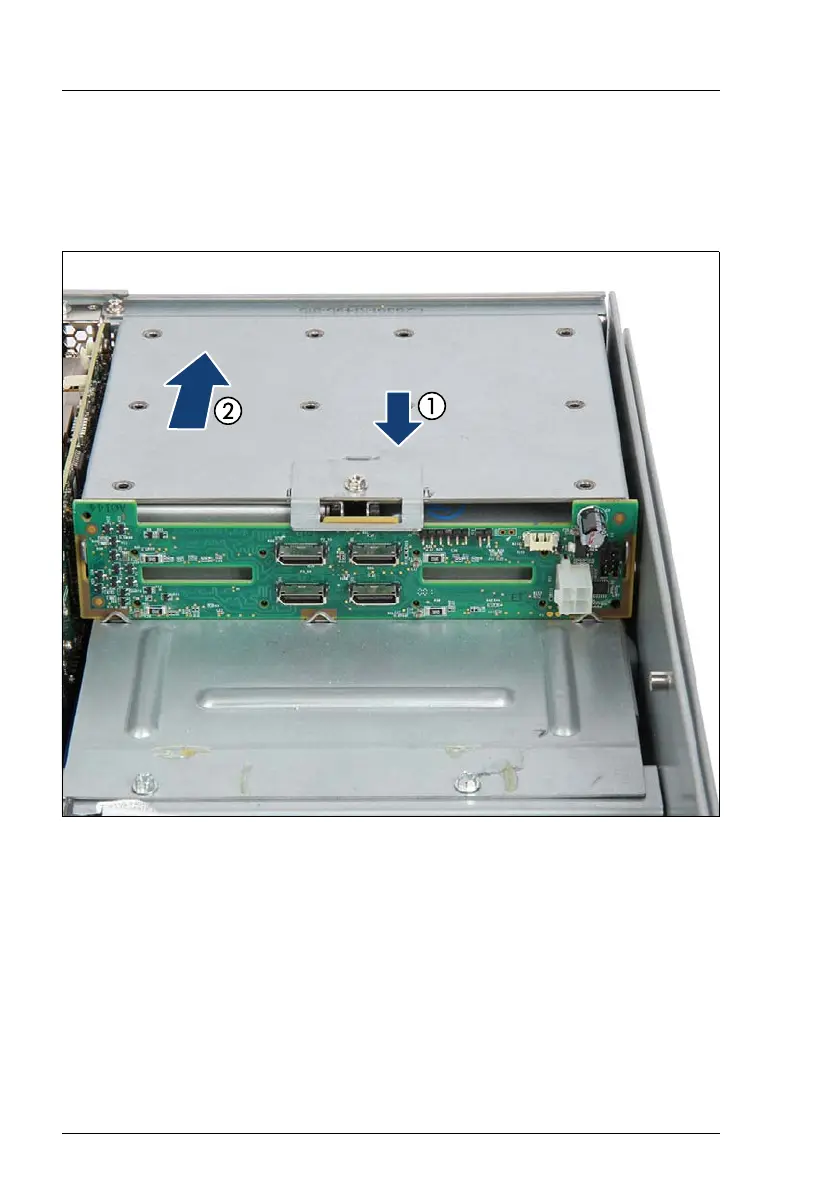

Figure 131: Positioning the rear HDD cage
Ê Position and align the rear HDD cage into the chassis (1).
Ê Push the rear HDD cage in the direction of the arrow (2).
