8.3 Replacing the fan holder
8.3.1 Preliminary steps
Ê "Locating the defective server" on page 53
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
8.3.2 Removing the fan holder
Ê Remove the fan module 1/2 and the fan module 5/6, see section "Removing
the fan module" on page 231.

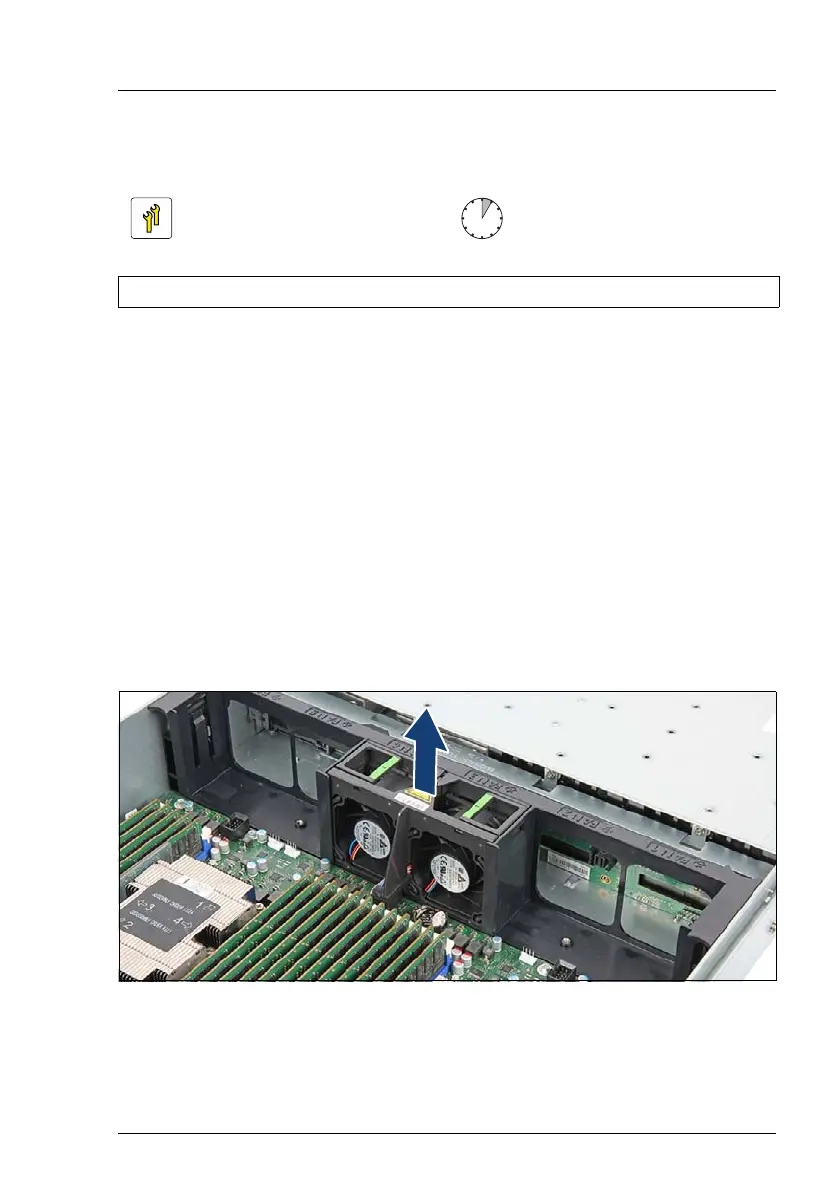

Figure 142: Removing the fan holder
Ê Lift the fan holder out of the chassis (see arrow).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PZ2 screw driver / hexagon screw driver 5 mm
