Fujitsu PRIMERGY RX2540 M4

RX2540 M4 Upgrade and Maintenance Manual 475
Front panel
14.7.1.3 Preparing the front panel module

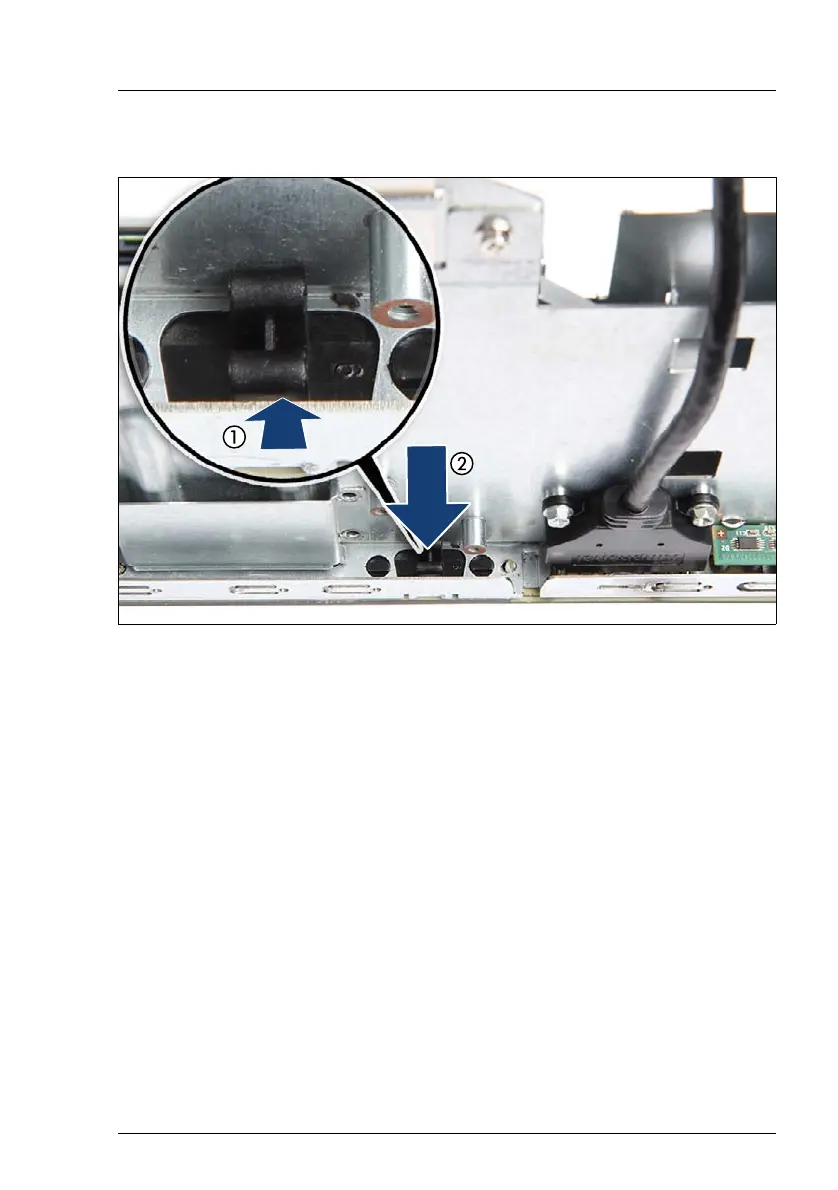

Figure 354: Removing the front VGA cover plate
Ê Insert a flat screw driver to disengage VGA cover plate from the front panel
cover (1).
Ê Remove the VGA cover plate (2).
