14.8.1.3 Preparing the front USB3.0 connector

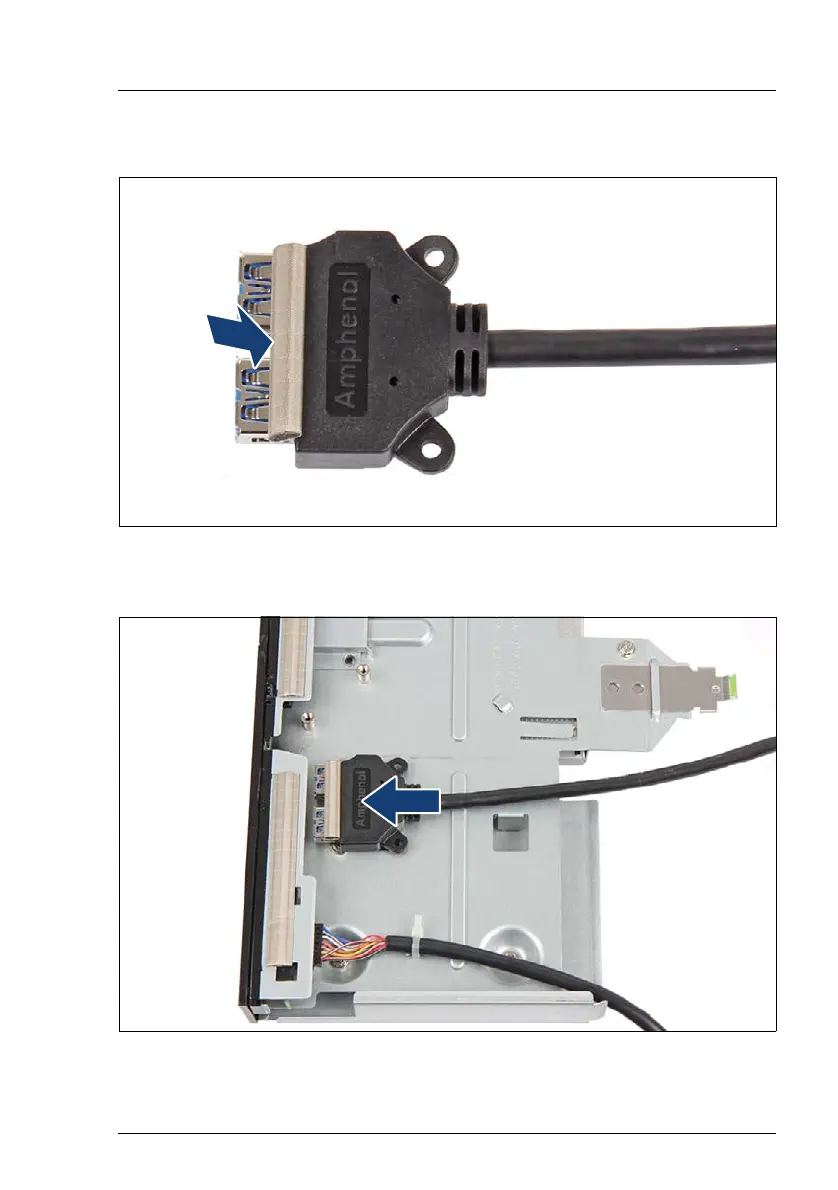

Figure 358: Sticking the gaskets
Ê Stick the self-adhesive gaskets on the front USB3.0 connector as shown.
Figure 359: Inserting the front USB3.0 connector
Ê Push the front USB3.0 connector into the front panel module.
