RX2540 M4 Upgrade and Maintenance Manual 207
Hard disk drives (HDD) and solid state drives (SSD)
7.4.12.2 Installing a 4x 2.5-inch PCIe SSD backplane

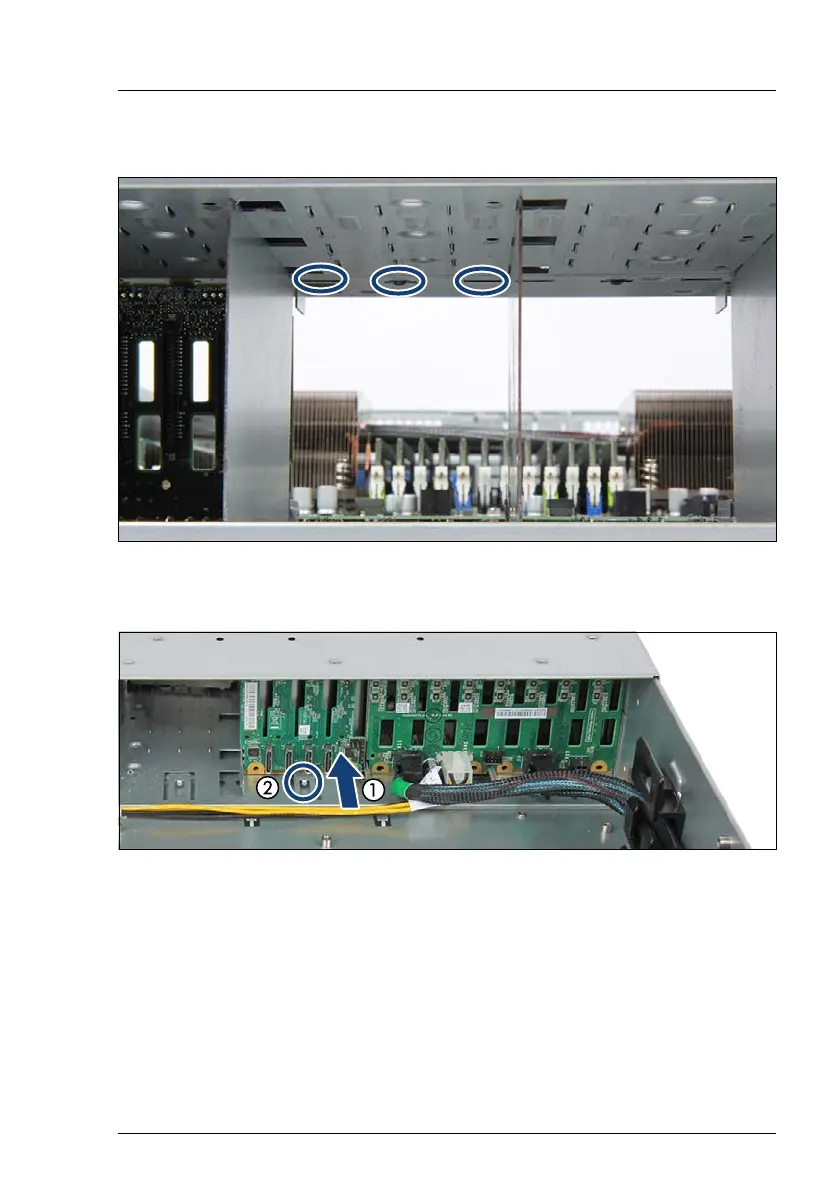

Figure 120: Recesses at the top for the 2.5-inch PCIe SSD backplane
Ê Regard the three recesses at the top.
Figure 121: Installing the 2.5-inch PCIe SSD backplane
Ê At a slight angle insert the backplane in the three recesses (see figure 120
on page 207) at the top.
Ê Fold back the backplane on the bottom (1) until it rests in the hook (2).
7.4.12.3 Connecting a 4x 2.5-inch PCIe SSD backplane
I For the cable plan, see chapter "Appendix B" on page 573.
