Fujitsu PRIMERGY RX2540 M4 Upgrade And Maintenance Manual

RX2540 M4 Upgrade and Maintenance Manual 249
Expansion cards and backup units
9.4.1.3 Installing the OCP module

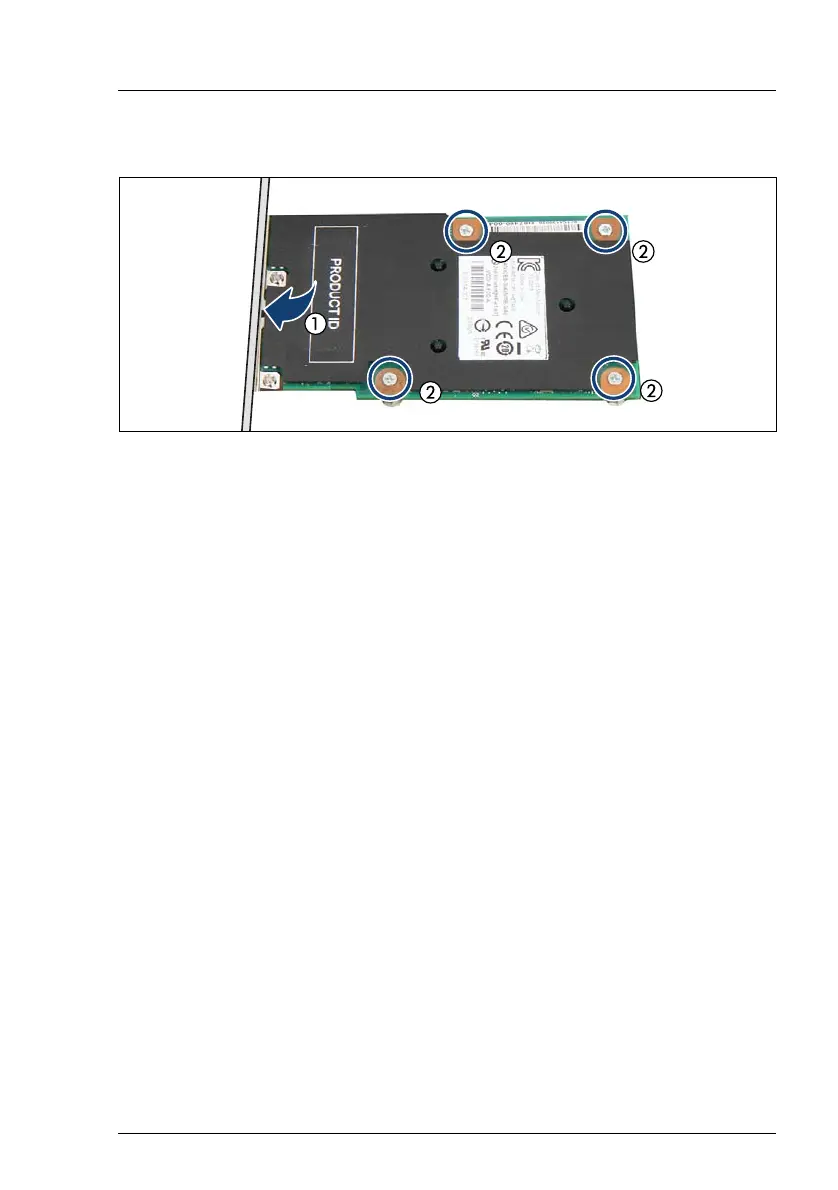

Figure 161: Installing the OCP module
Ê Install the OCP module with the bottom side above (1) on the four bolts (see
figure 158). Ensure that the connectors are positioned correctly in the rear
side.
Ê Fasten OCP module with four screws (part of OCP kit) on the four bolts (2).
9.4.1.4 Concluding steps
Ê If applicable, install the riser module 1, see section "Handling riser modules"
on page 71.
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê Inform the customer about changed WWN and MAC addresses. For more
information, see section "Looking for MAC/WWN/GUID and SAS
addresses" on page 115.
Ê "Updating the NIC configuration file in a Linux and VMware environment" on
page 112
Ê "Configuring LAN teaming" on page 119

Fujitsu PRIMERGY RX2540 M4 Specifications

General

Processor	Intel Xeon Scalable Processor Family
Form Factor	2U rack server
Chipset	Intel C621
Memory	Up to 3TB DDR4
Storage	Up to 24 x 2.5-inch SAS/SATA/NVMe drives or Up to 12 x 3.5-inch SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60 (with optional controller)
Expansion Slots	Up to 8x PCIe Gen3 slots
Power Supply	800W or 1200W (1+1 redundant)
Memory Type	DDR4
Management	iRMC S5 (Integrated Remote Management Controller)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
