RX2540 M4 Upgrade and Maintenance Manual 203
Hard disk drives (HDD) and solid state drives (SSD)

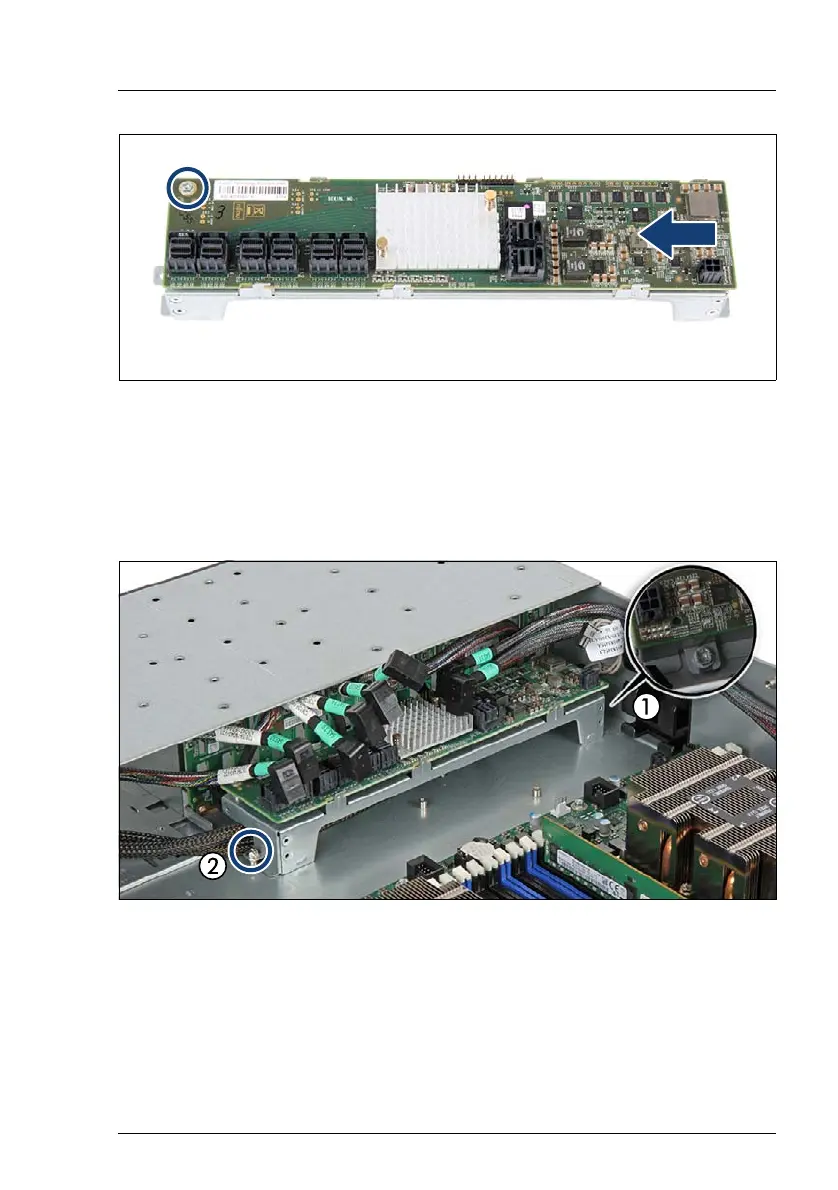

Figure 116: Installing the SAS expander board
Ê Push the SAS expander board in the direction of the arrow.
Ê Fasten the SAS expander board with one screw (see circle).
7.4.11.5 Installing the SAS expander board holder
Figure 117: Installing the SAS expander board holder
Ê Slide the SAS expander board holder in the chassis until the recess fits
under the screw (see close-up 1).
Ê Fasten the SAS expander board holder with the two screws (1, 2).
