416 Upgrade and Maintenance Manual RX2540 M4
13.4.1.2 Removing the air grid

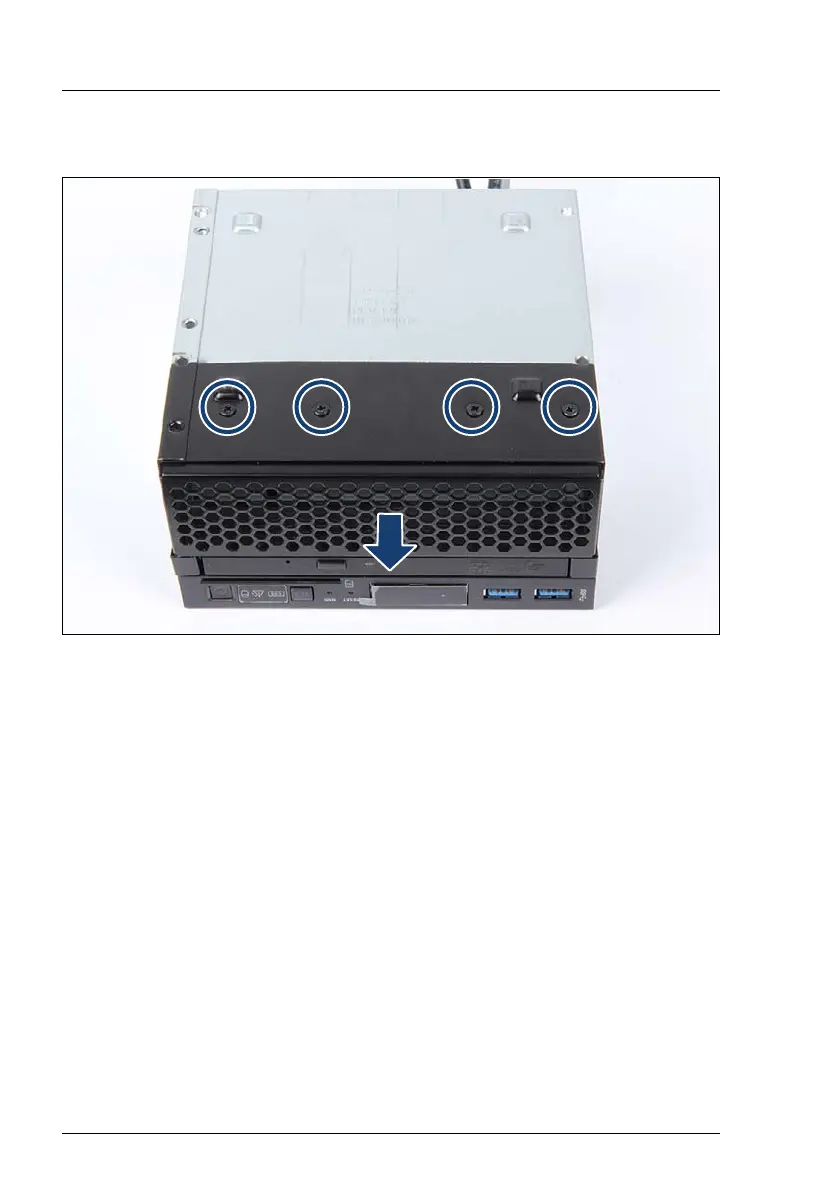

Figure 296: Removing the air grid
Ê Remove the 4 screws.
I Keep the 4 screws - they will be reused for fixing the LTO drive.
Ê Remove the air grid.
V CAUTION!
Save the dummy cover (air gird) for future use.
Always replace dummy modules into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
