Fujitsu PRIMERGY RX2540 M4

496 Upgrade and Maintenance Manual RX2540 M4
Additional interfaces
15.2.1.3 Installing the rear VGA connector

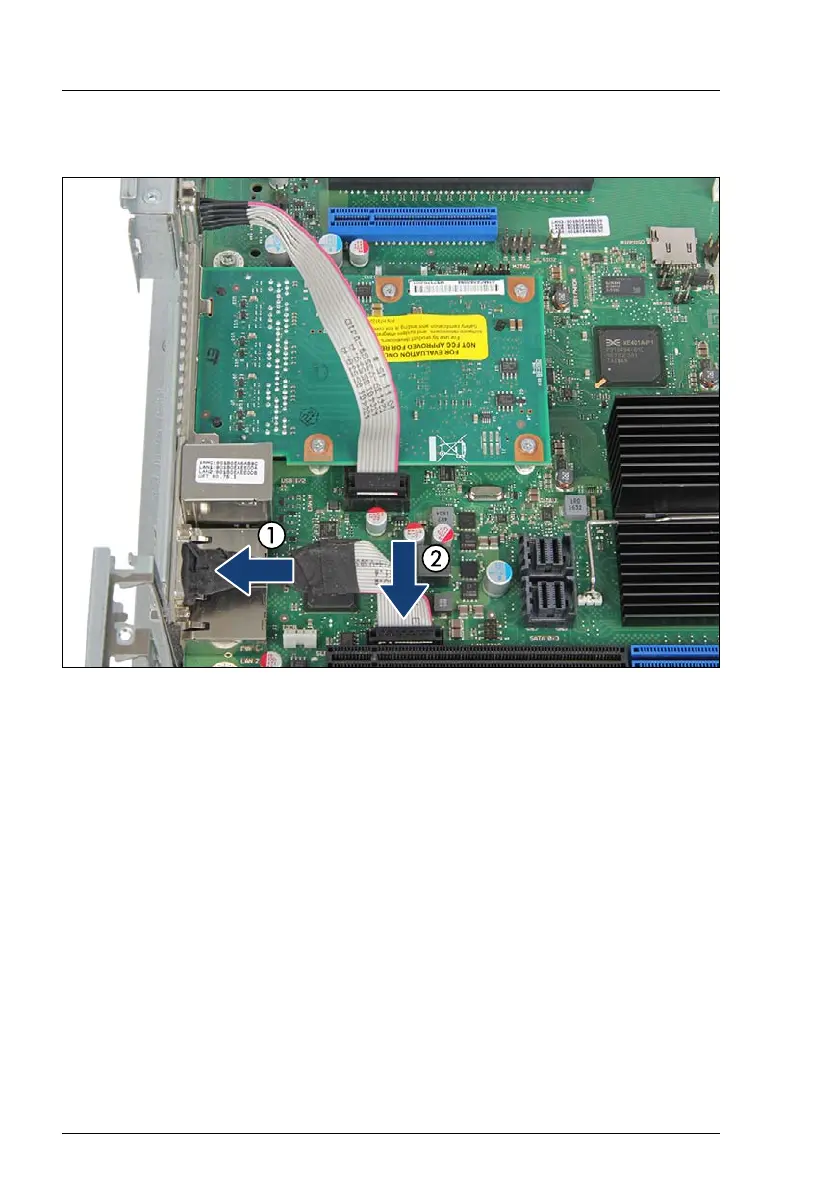

Figure 370: Installing the rear VGA connector (A)
Ê Insert the rear VGA connector into the slot cover (1).
Ê Connect the cable to the connector Rear VGA on the system board (2)
