82 Upgrade and Maintenance Manual RX2540 M4
Basic hardware procedures
4.8.3 Riser modules for GPGPU cards (FL)
4.8.3.1 Removing the riser module 1 (FL)

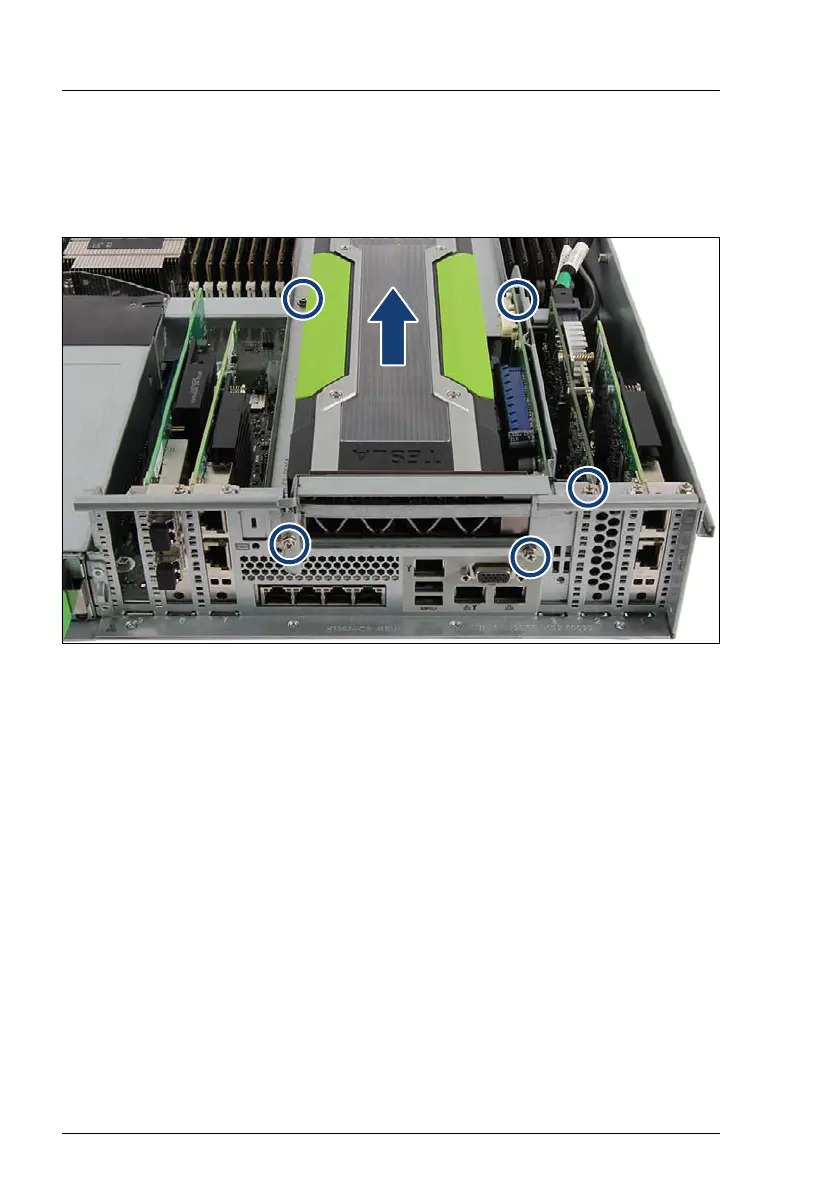

Figure 26: Removing the riser module 1
Ê Remove five screws (see circles).
Ê Carefully take out the riser module.
