Fujitsu PRIMERGY RX2540 M4

RX2540 M4 Upgrade and Maintenance Manual 73
Basic hardware procedures
4.8.1.2 Installing the riser card

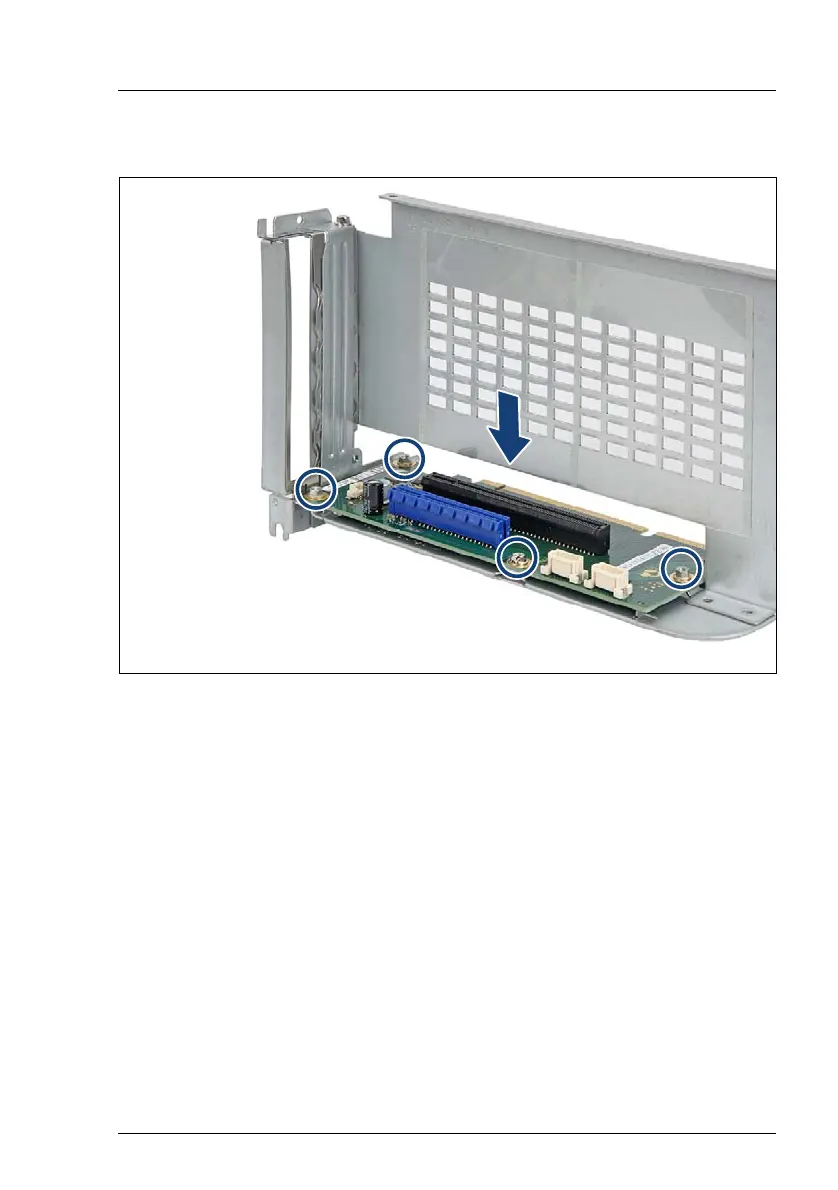

Figure 17: Installing the riser card
Ê Insert the riser card in the holder (see arrow).
Ê Fasten the riser card with four screws (see circles).
