302 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.10.3.10 Connecting the FBU

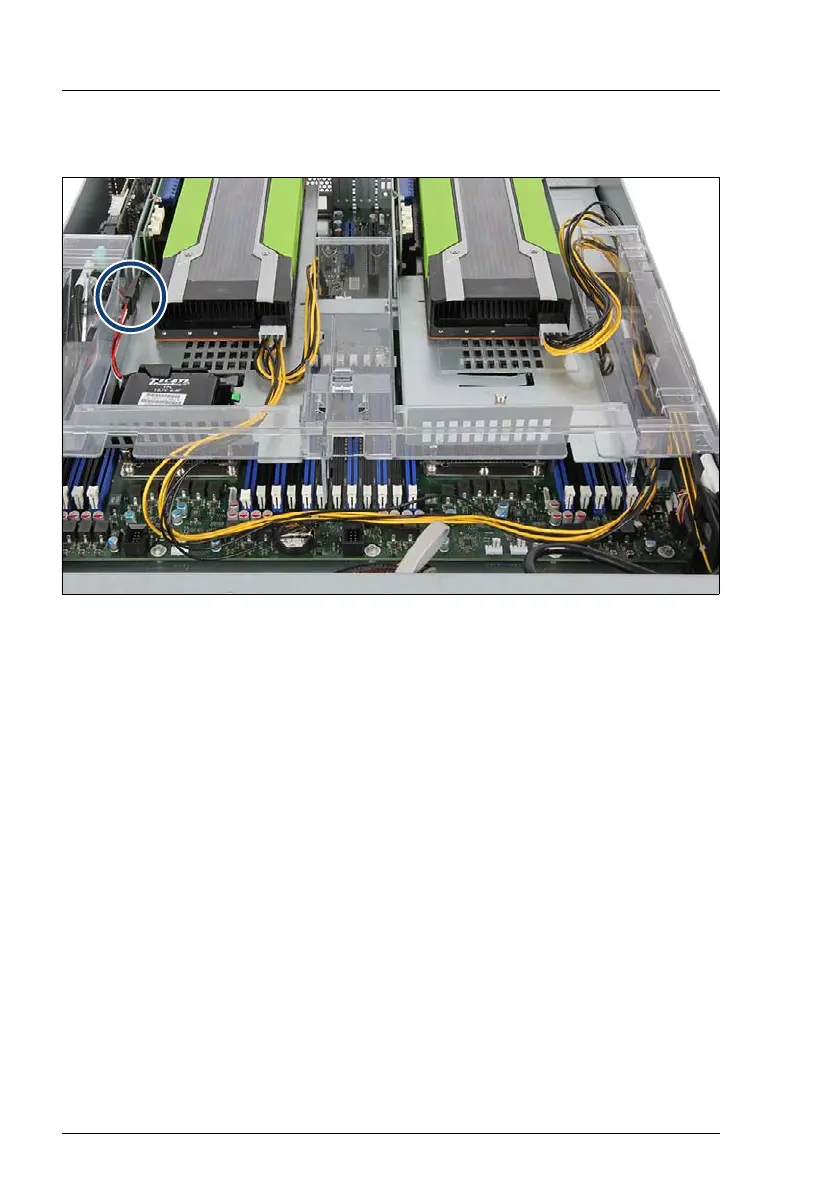

Figure 200: Connecting the power cable
Ê Connect the FBU with the FBU cable to the RAID controller (see circle).
I Therefore an already installed RAID controller must be removed, see
section "Removing an expansion card" on page 263 and "Installing
an expansion card" on page 254.
Ê Run the cables as shown.
9.10.3.11 Concluding steps
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê If applicable, "Updating expansion card firmware" on page 100.
Ê If applicable, "Enabling Option ROM scan" on page 101.
Ê "Resuming BitLocker functionality" on page 112
