13.5.2.1 Preliminary steps
Ê Ask the system administrator to eject all remaining backup or optical media
from the backup or ODD before removing it from the server.
Ê "Suspending BitLocker functionality" on page 91
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
Ê "Removing the fan holder" on page 233
13.5.2.2 Removing the RDX drive

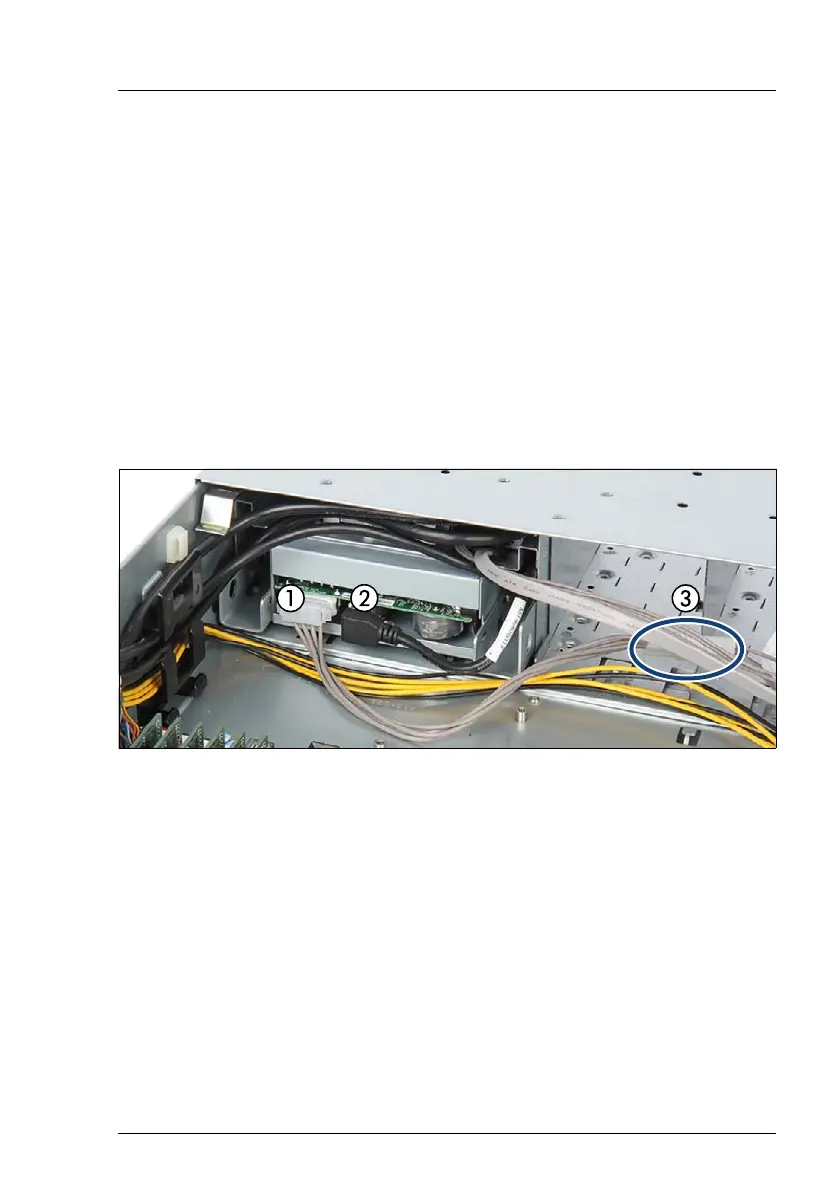

Figure 315: Disconnecting the cables from the RDX drive
Ê Disconnect both cables (1, 2).
I If you do not want to replace the RDX drive but remove it, you can
remove the USB cable (C37) from the system board and the power
adapter cable (C18) (3).
Ê "Removing the front panel cage" on page 439
