264 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units

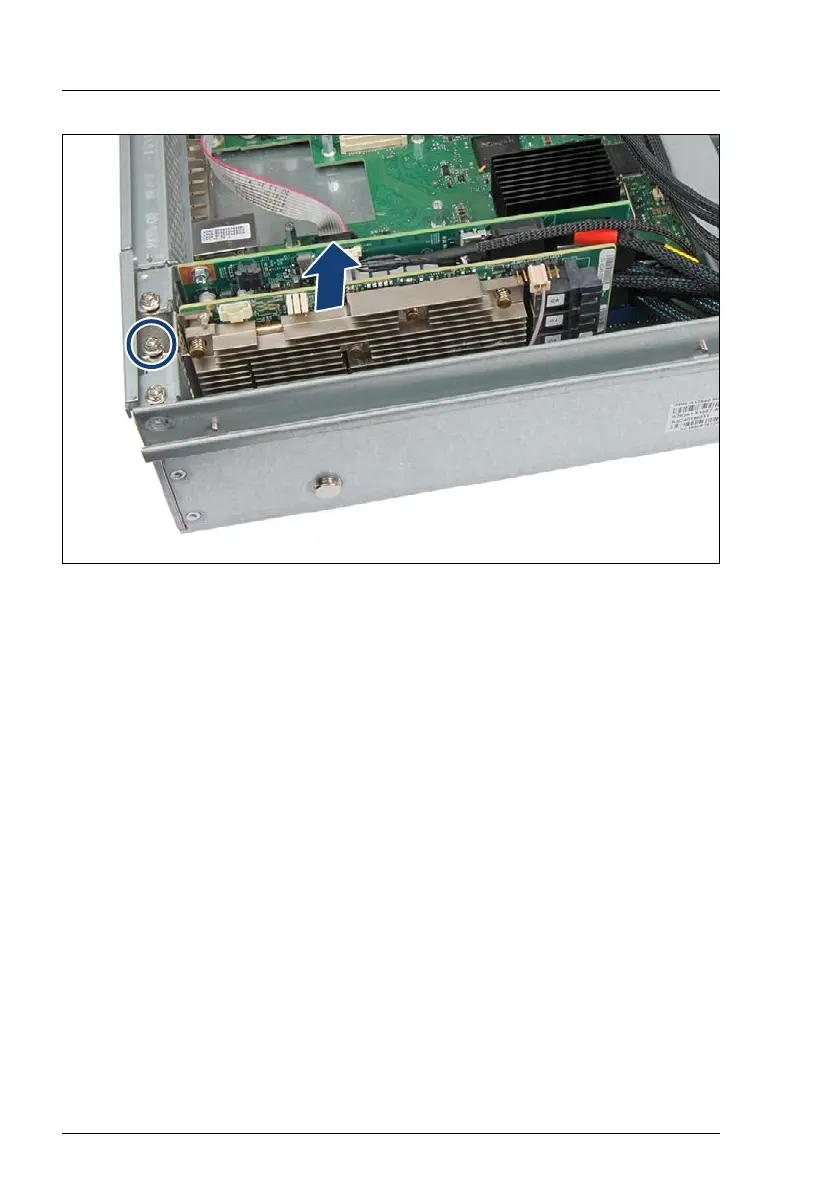

Figure 173: Removing an expansion card
Ê If applicable, "Removing an SFP+ transceiver module" on page 244.
Ê Remove the screw (see circle).
Ê Carefully remove the expansion card from its slot (see arrow).
9.5.2.3 Installing a PCI slot cover
V CAUTION!
Always replace slot covers into unused PCI slot openings to comply with
applicable EMC regulations and satisfy cooling requirements.
