492 Upgrade and Maintenance Manual RX2540 M4

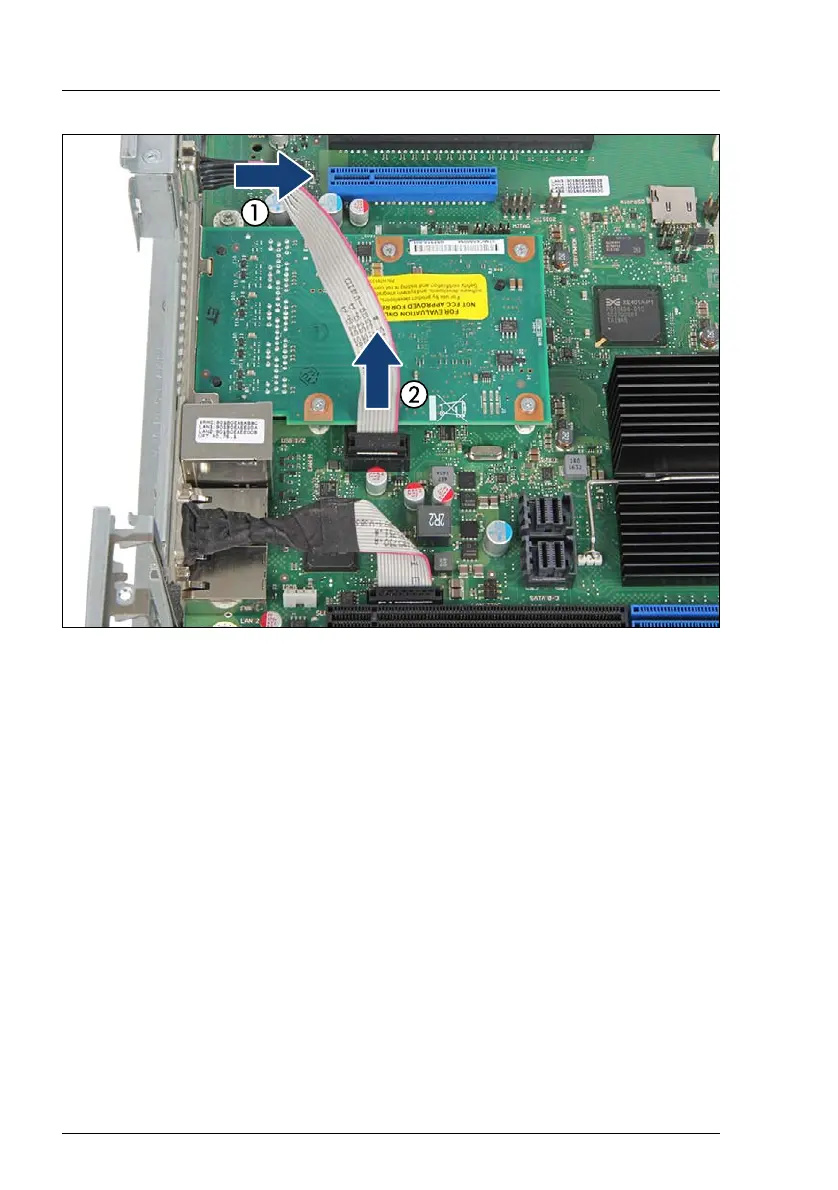

Figure 367: Removing the serial connector (B)
Ê Remove the serial connector (1).
Ê Remove the cable from the system board (2).
15.1.2.3 Concluding steps
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
