RX2540 M4 Upgrade and Maintenance Manual 177
Hard disk drives (HDD) and solid state drives (SSD)
7.3.12.5 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
7.4 2.5-inch HDD/SSD configurations
7.4.1 Configuration with up to eight HDD/SSD modules

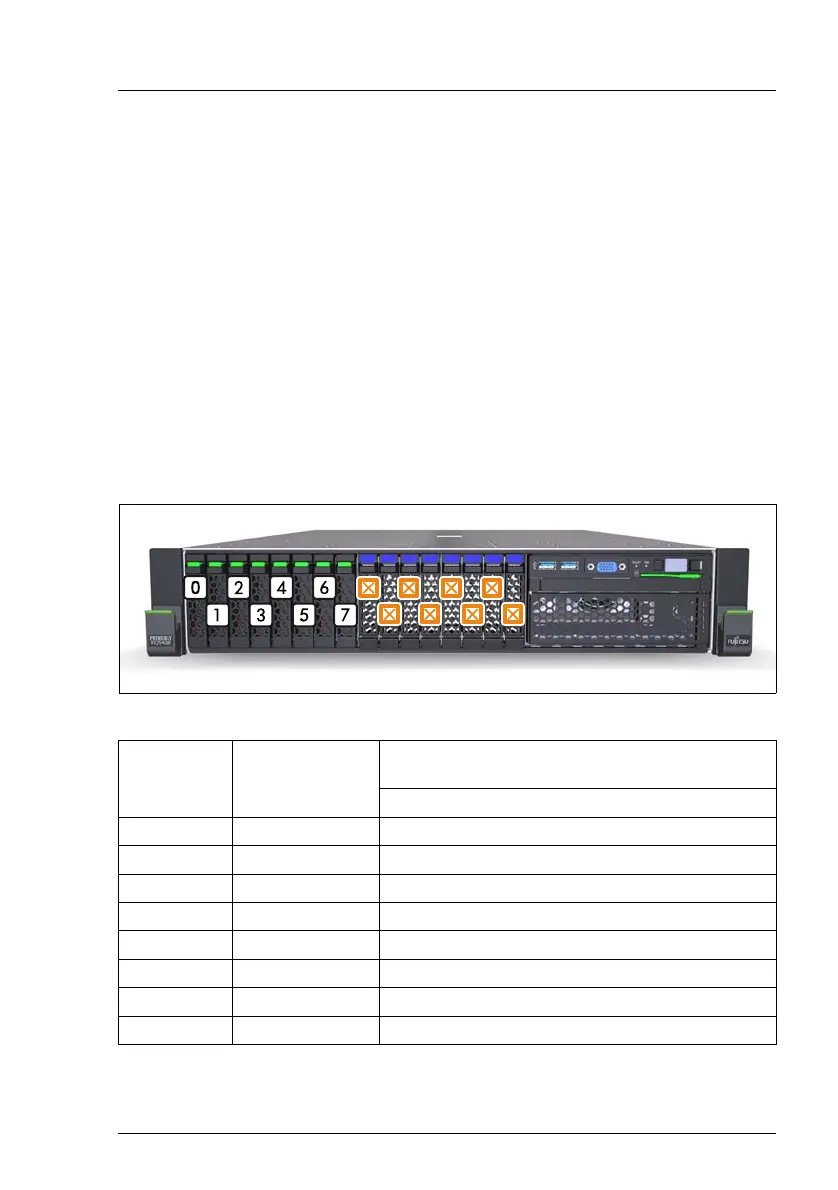

Figure 92: Configuration with up to eight 2.5-inch HDDs/SSDs
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
