Note for LAN connectors on OCP modules
The LAN connectors on the OCP modules are numbered in ascending order
from right to left beginning with “0”.
17.2.3.2 Indicators on the I/O panel
Global Error, ID and CSS indicators

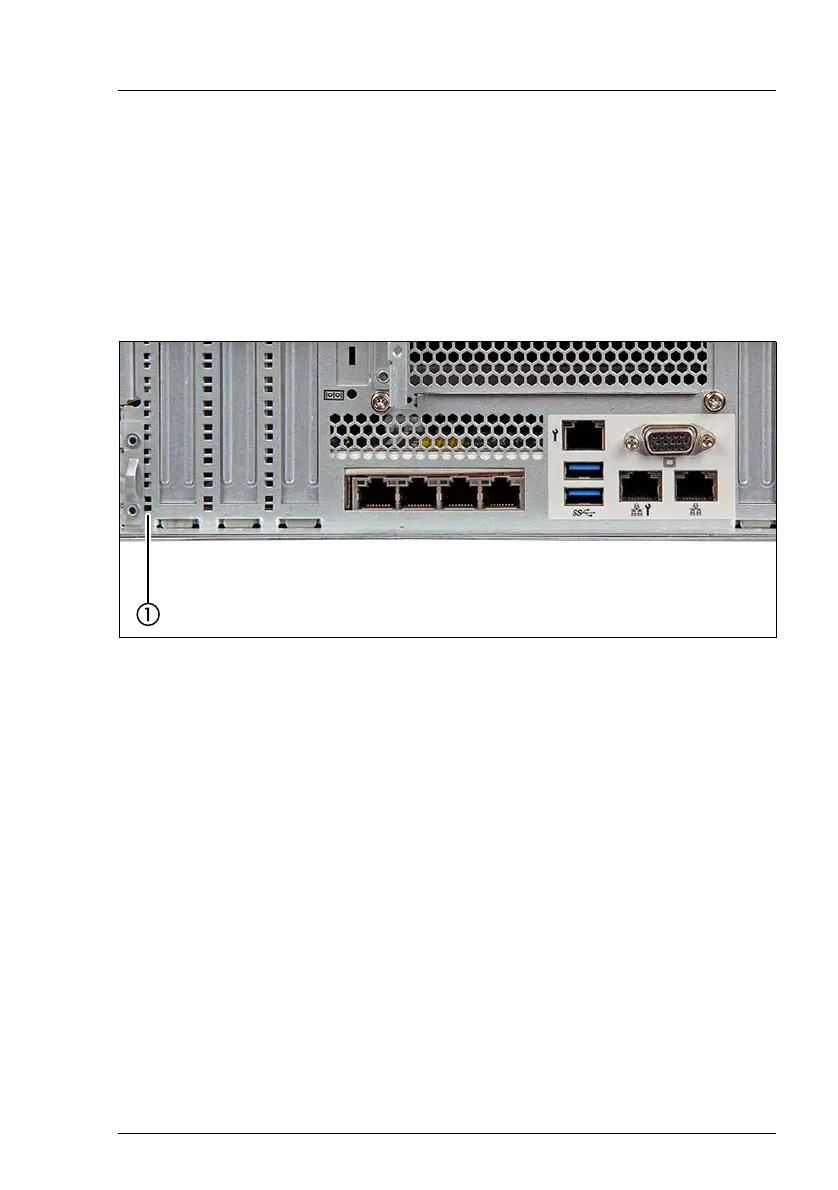

Figure 421: Global Error, ID and CSS indicators (visible through the chassis perforation)
