170 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)

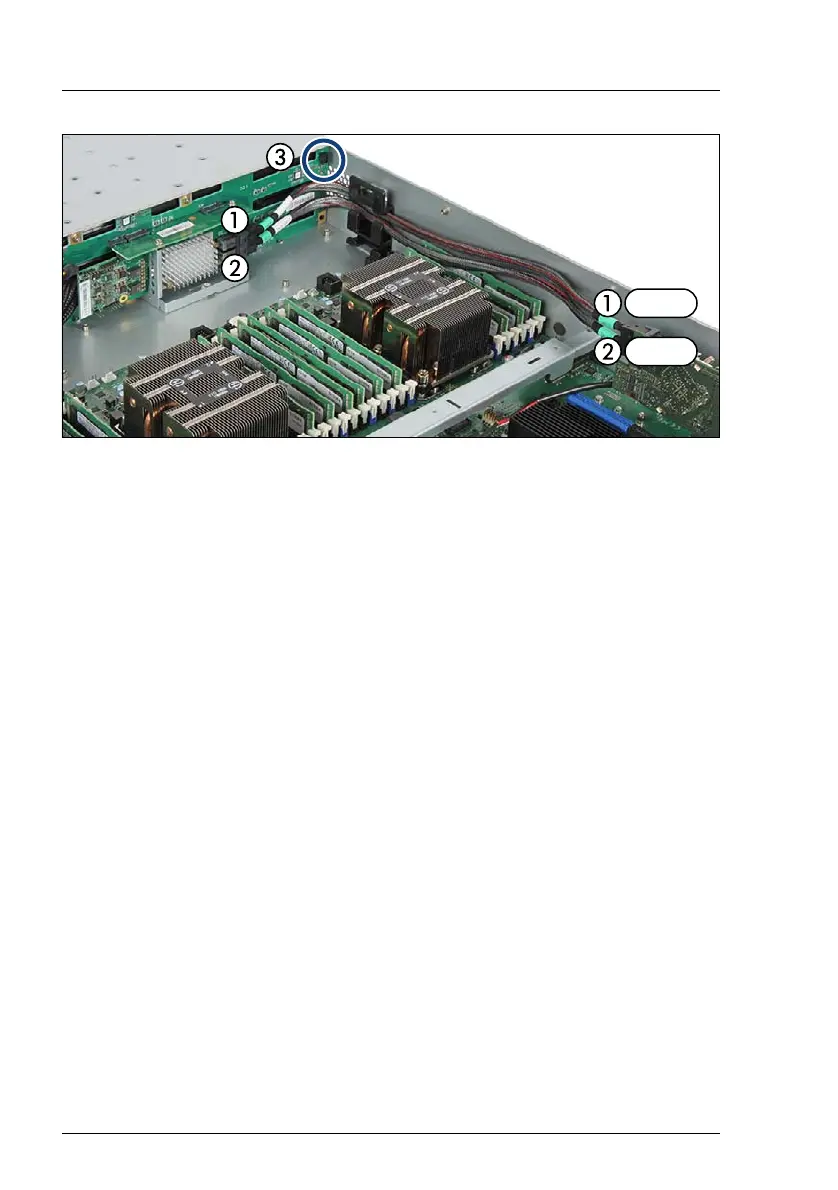

Figure 83: Connecting the SAS expander board to the RAID controller
Ê Connect the two SAS cables to the SAS expander board:
Ê If applicable, connect the OOB cable to the backplane (3).
I For the cable plan, see chapter "Appendix B" on page 573.
7.3.10.6 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê Insert all HDD/SSD modules, see section "Installing 3.5-inch HDD modules"
on page 148.
I Ensure that you install the HDD/SSD module in the bay it was located
before the HDD backplane replacement.
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
1 from connector "MLC1" on the SAS controller to the connector "X1"
2 from connector "MLC2" on the SAS controller to the connector "X2"
