RX2540 M4 Upgrade and Maintenance Manual 293
Expansion cards and backup units

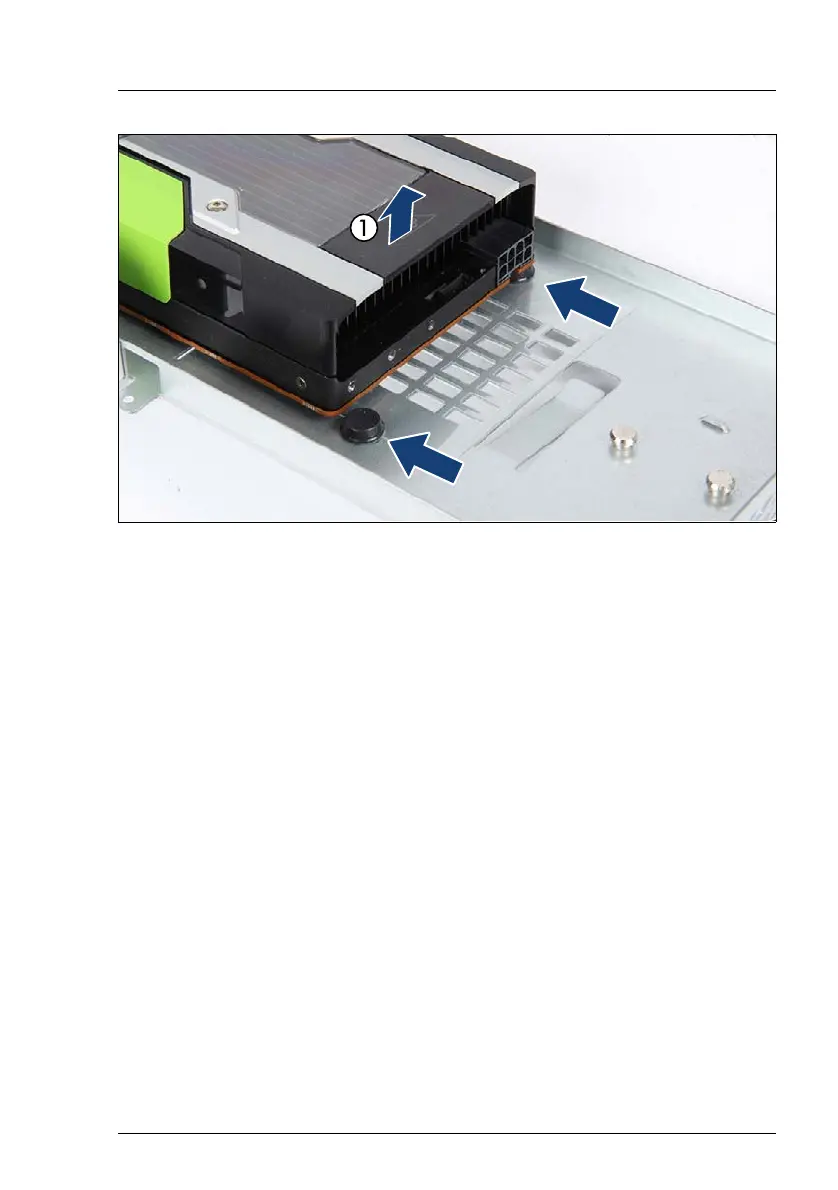

Figure 193: Sticking the rubber pads
Ê Pull the GPGPU a little upward (1).
Ê Push the rubber pads under the GPGPU
Ê Press the CPGPU downward to fasten the rubber pads finally.
Ê Fasten the GPGPU card with two screws (see oval in figure 191 on
page 292).
9.10.1.3 Replacing the heat sink (FL)
Ê Replace the standard CPU heat sink with the CPU heat sink for GPGPU
card, see section "Installing the CPU and heat sink" on page 351.
9.10.1.4 Removing the slot cover for the riser module 1
Ê Remove the slot cover for the riser module 1, see section "Removing the slot
cover for the riser module 1" on page 271.
9.10.1.5 Removing the rear air grid riser module 1
Ê Remove the rear air grid riser module 1, see section "Removing the rear air
grid riser module 1" on page 274.
