294 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.10.1.6 Installing the riser module 1
– Install the riser module 1, see section "Installing the riser module 1 (FL)" on
page 83.
Cabling GPGPU M60/P100/P40/V100

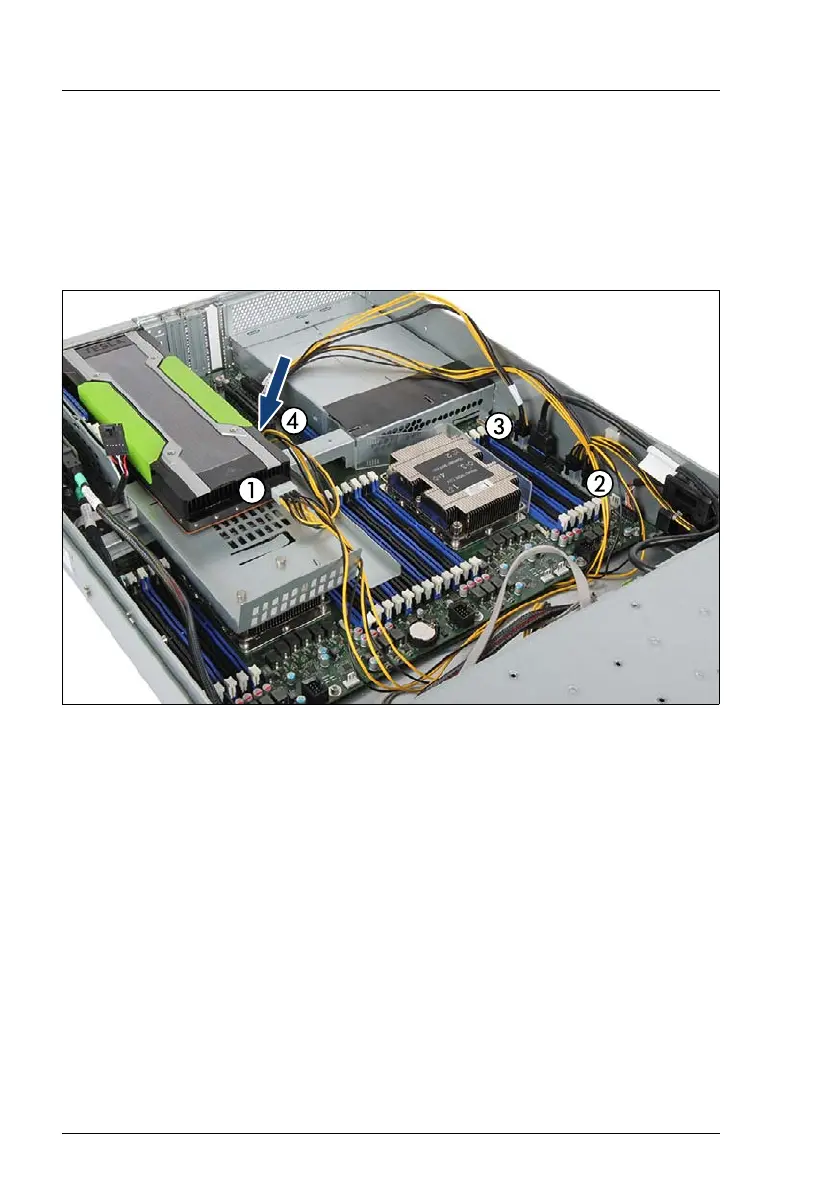

Figure 194: Connecting the power cable
Ê Connect the power cable C20:
Ê Run the cables as shown.
9.10.1.7 Installing the FBU
Ê Install the FBU on the riser card holder (FL), see section "Installing an FBU
on the riser card holder (FL)" on page 317.
1 Connector "P4" to the GPGPU M60/P100/P40/V100
2 Connector "P1" to connector "PWR3" on the system board
3 Connector "P3" to connector "PWR2" on the system board
4 Connector "P5" to connector "PWR4" on the system board
