RX2540 M4 Upgrade and Maintenance Manual 515
System board and components
Ê If applicable, remove the riser module 1, see section "Handling riser
modules" on page 71.
16.4.2.2 Removing the iRMC microSD card

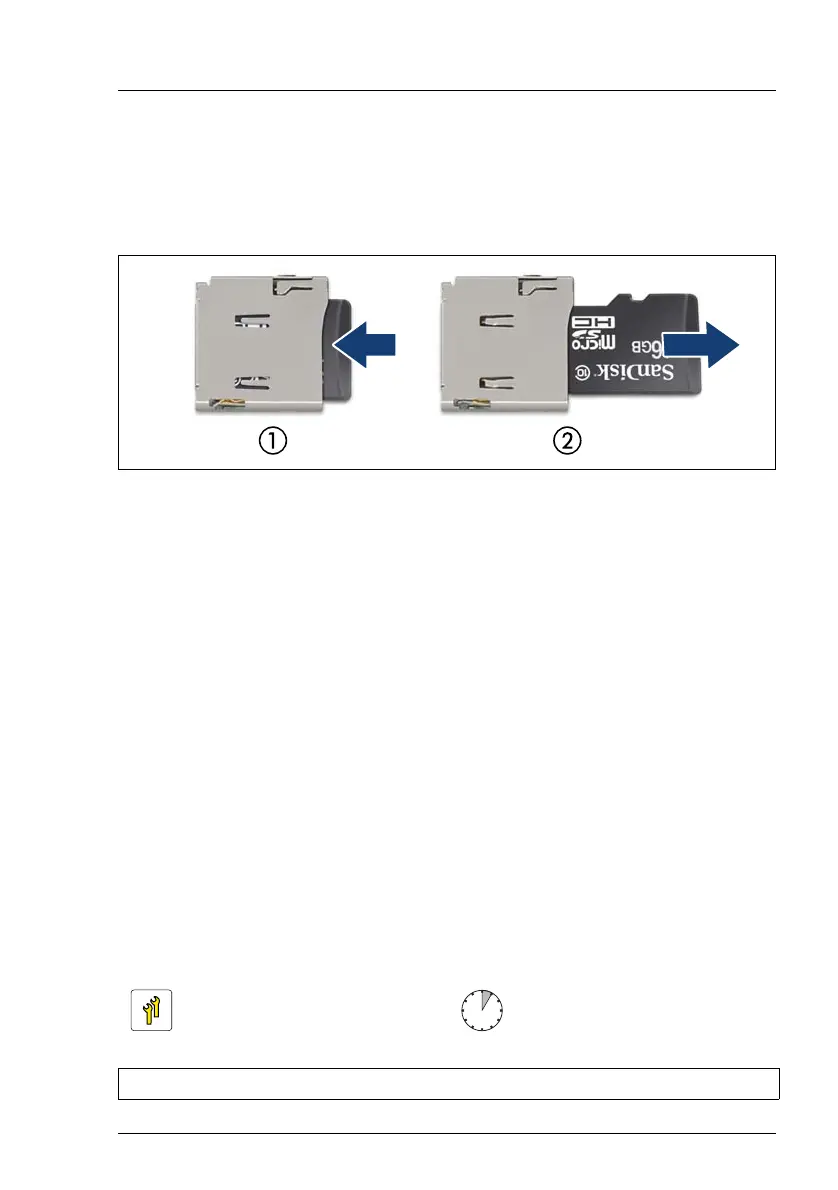

Figure 382: Removing the iRMC microSD card
Ê To eject the iRMC microSD card, gently push it in and then let go (1).
Ê Pull the iRMC microSD card straight out of its slot (2).
V CAUTION!
The iRMC microSD card contains customer information. After removing
the iRMC microSD card, hand the card over to the customer.
16.4.2.3 Concluding steps
Ê If applicable, install the riser module 1, see section "Handling riser modules"
on page 71.
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
16.4.3 Replacing the iRMC microSD card
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: a pair of side-cutting pliers
