13.3.1.2 Removing the ODD dummy cover

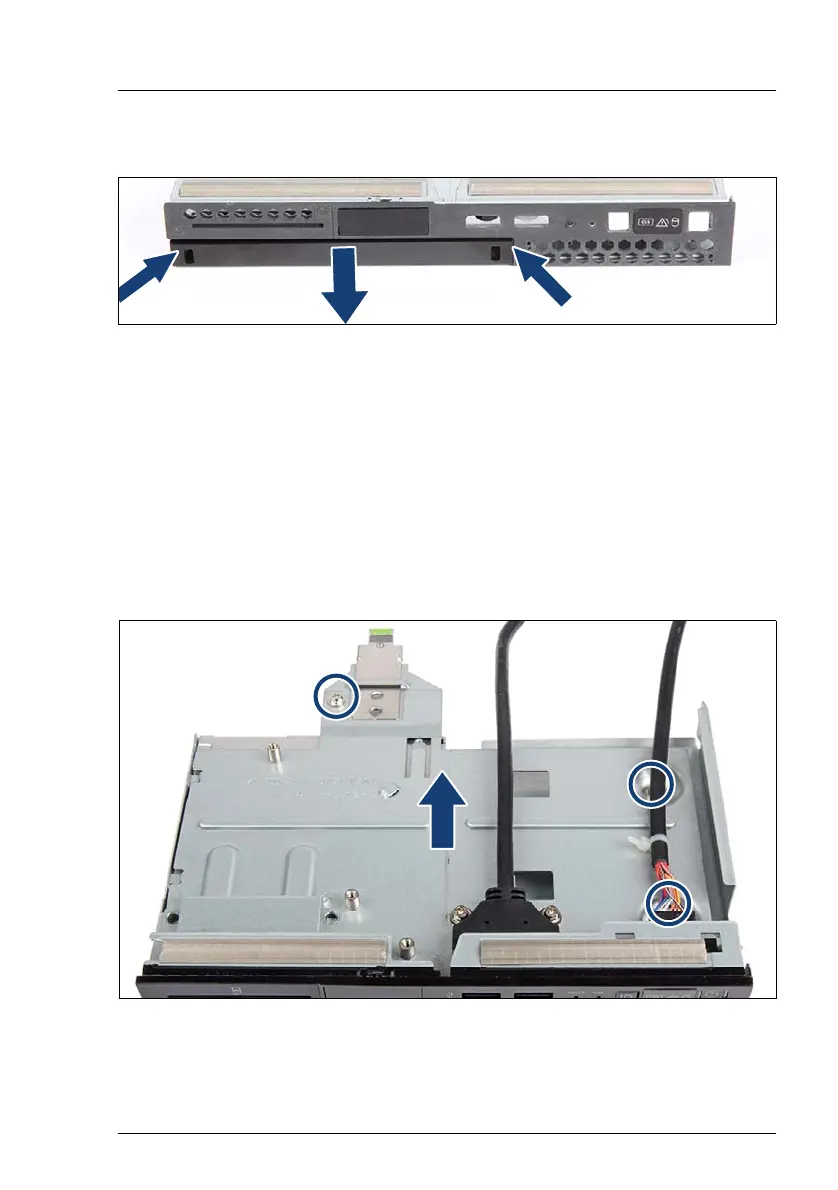

Figure 284: Removing the ODD dummy module
Ê Unlock the ODD dummy cover.
Ê Remove the ODD dummy cover.
V CAUTION!
Save the ODD dummy cover for future use.
Always replace dummy modules into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
13.3.1.3 Installing the ODD
Figure 285: Removing the cover plate
Ê Disconnect the front panel cable.
Ê Remove the three screws (see circles).
