RX2540 M4 Upgrade and Maintenance Manual 321
Expansion cards and backup units
9.11.4.3 Disconnecting the FBU cable from the FBU

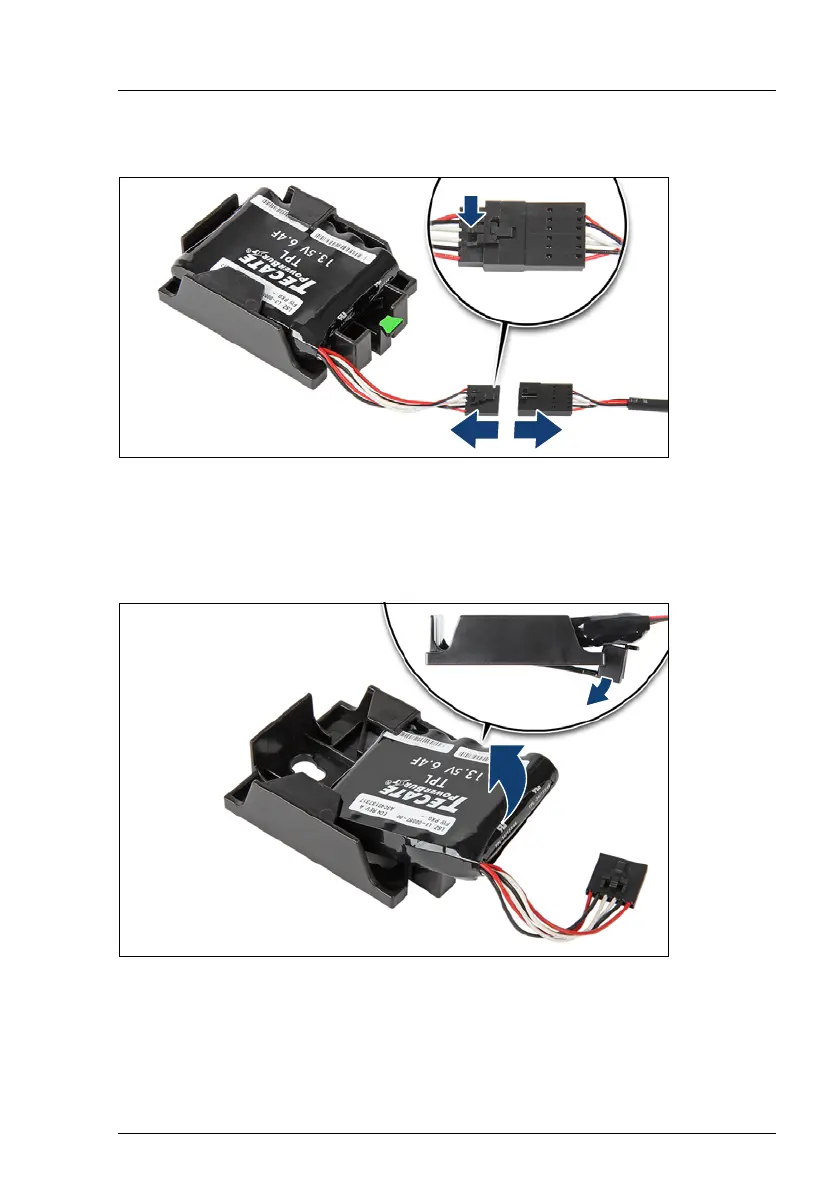

Figure 216: Disconnecting the FBU cable from the FBU
Ê Disconnect the FBU cable from the FBU.
9.11.4.4 Removing the FBU from the holder
Figure 217: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
