RX2540 M4 Upgrade and Maintenance Manual 473

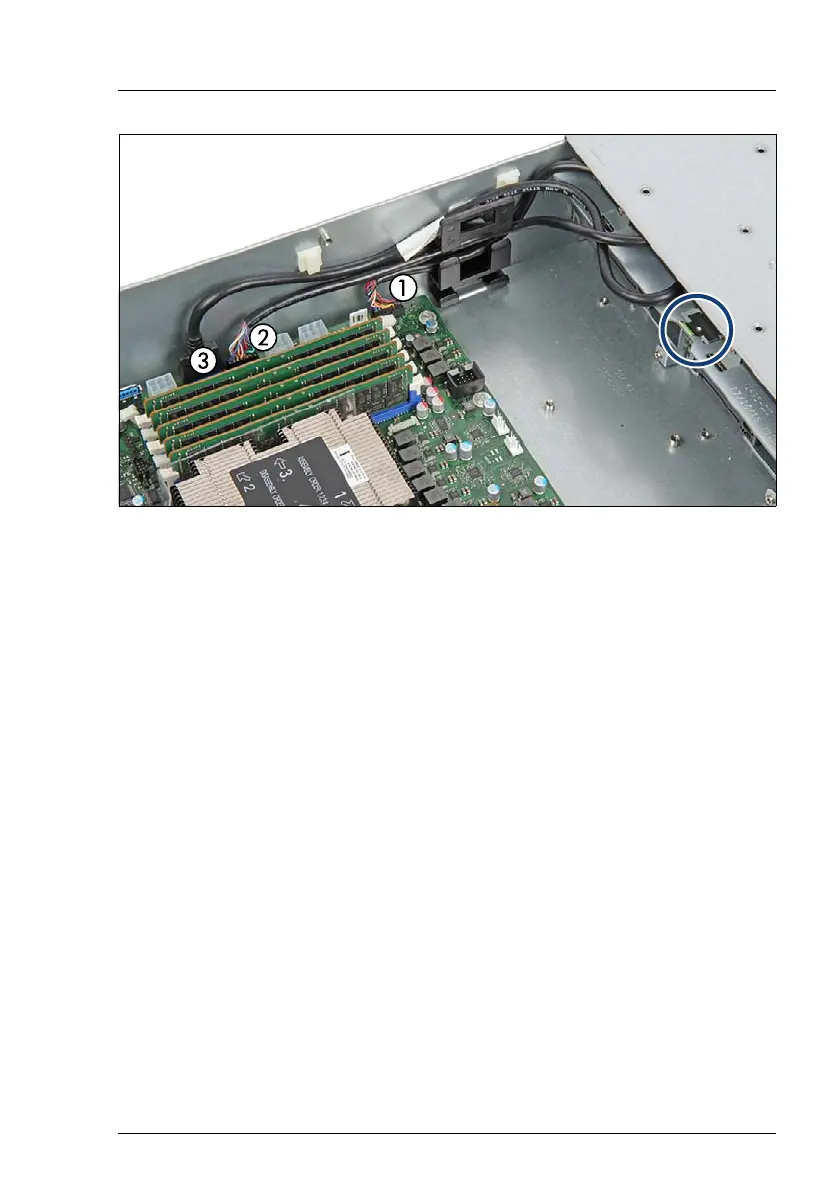

Figure 353: Connecting the front panel cable
Ê Run the cables through the opening as shown.
Ê Connect the following cables to the system board:
Ê Carefully pull the front panel module into its bay and regard that the locking
mechanism snaps in (see circle).
V CAUTION!
Ensure that none of the cables are strained or damaged.
14.6.1.4 Concluding steps
Ê If applicable, install the riser module, see section "Riser modules for GPGPU
cards (FL)" on page 82.
Ê "Installing the fan holder" on page 234
1 Front panel cable
2 If applicable, front VGA cable
3 Front USB3.0 cable
If applicable, power ODD cable
If applicable, data ODD cable
