504 Upgrade and Maintenance Manual RX2540 M4
System board and components
Ê "Removing the air duct" on page 88
Ê If applicable, remove the riser module 1, see section "Handling riser
modules" on page 71.
16.3.1.2 Installing the TPM
I The onboard position of the TPM connector can be found in section
"Connectors and indicators" on page 549.

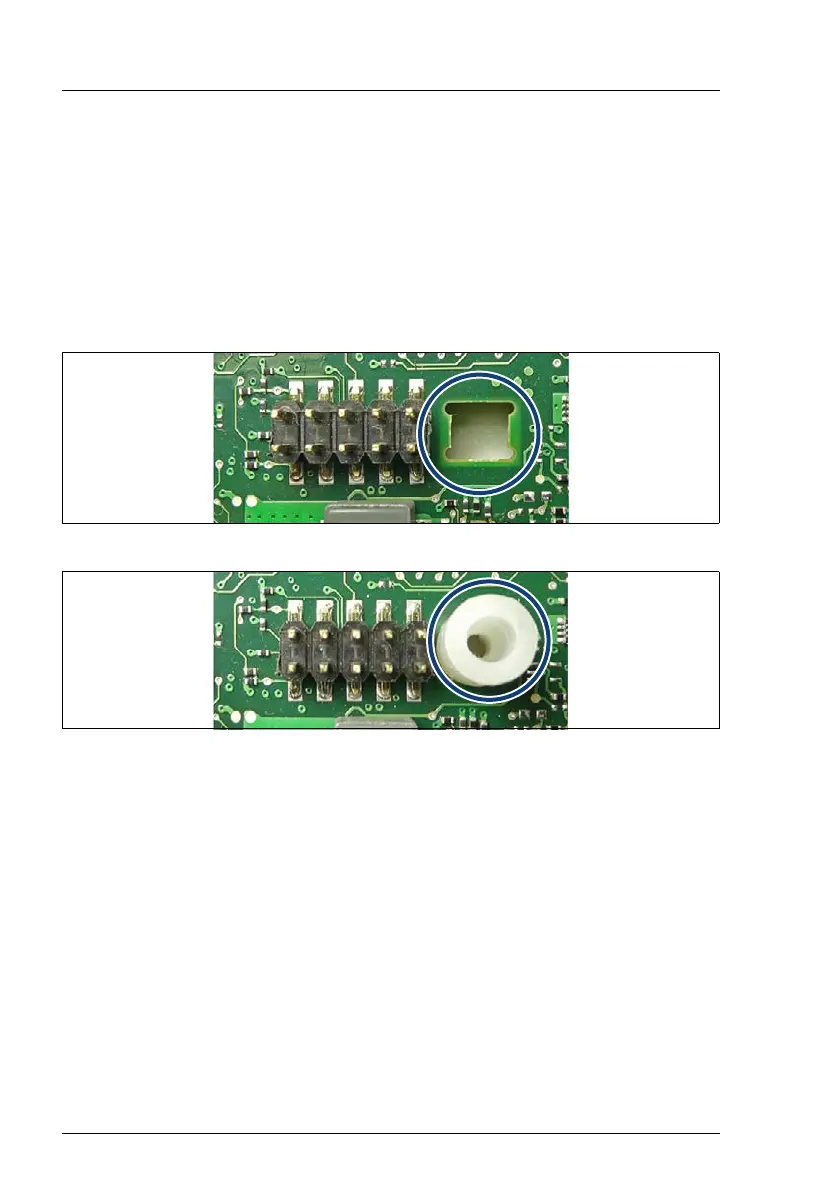

Figure 374: Position for the TPM spacer
Figure 375: Inserting the TPM spacer on the system board
Ê Insert the TPM spacer into the hole on the system board.
