Hard disk drives (HDD) and solid state drives (SSD)

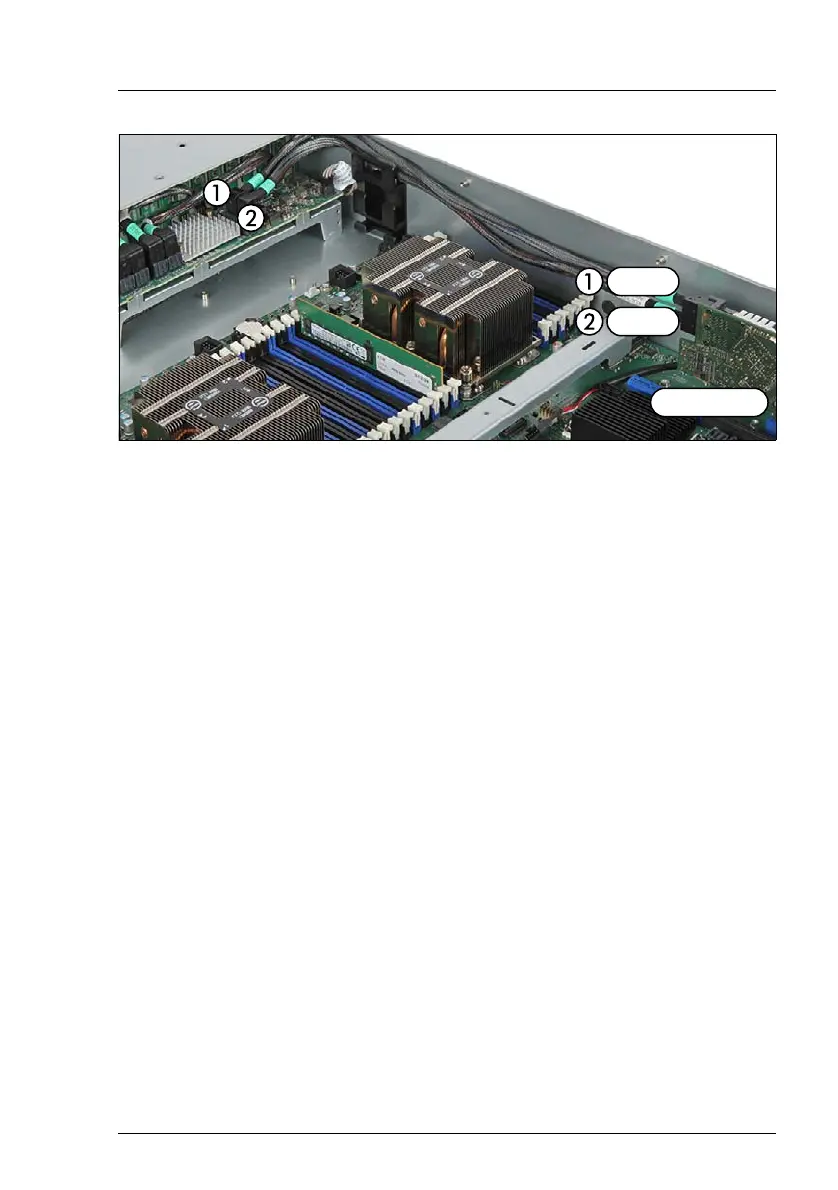

Figure 119: Connecting cables to SAS expander board to the controller
Ê Connect the two SAS/SATA cables to the SAS expander board:
7.4.11.7 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
1 From SAS controller connector "MLC1" to connector "X1"
2 From SAS controller connector "MLC2" to connector "X2"
