RX2540 M4 Upgrade and Maintenance Manual 521
System board and components
16.5.2 Removing the M.2 SSD
16.5.2.1 Preliminary steps
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
Ê If applicable, remove the riser module 1, see section "Handling riser
modules" on page 71.
16.5.2.2 Removing the M.2 SSD

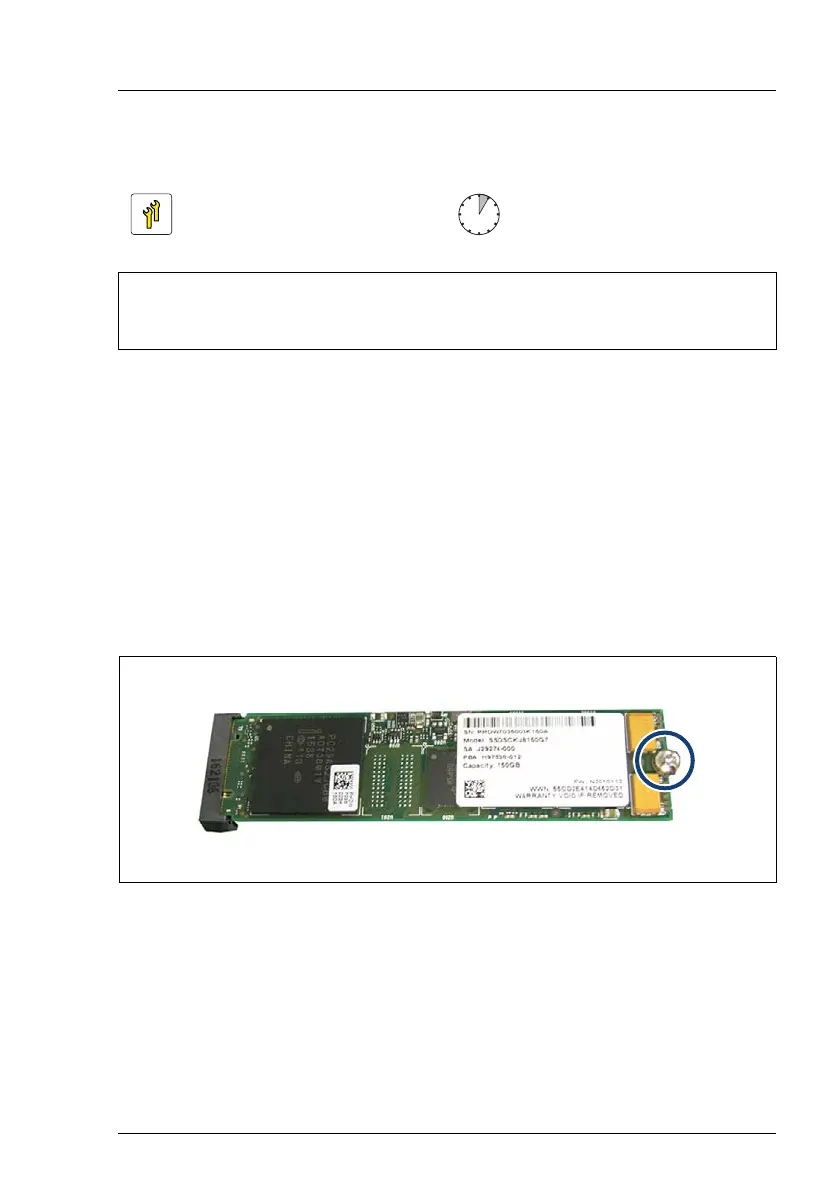

Figure 387: Removing the M.2 SSD (A)
Ê Remove the screw (see circle).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
– Hexagon screw driver (for moving the screw to another hex
agon
stand-off)
